Mil On With DTC P0420-00 (T-SB-0098-22)

WARNING: This page is about the Highlander Hybrid LE, 2.5L Eng VIN A, which is a different variant/trim than selected.
Publication date: 2022-10-31
Reference number: T-SB-0098-22

MIL ON WITH DTC P0420-00

MIL ON WITH DTC P0420-00

TECHNICAL SERVICE BULLETIN

Reference Number(s): T-SB-0098-22, Date of Issue:  October 31, 2022
TOYOTA: 2019 - 2022 Avalon HV; 2018 - 2023 Camry, Camry HV; 2020 - 2022 Highlander HV; 2019 - 2020 RAV4, RAV4 HV
SERVICE CATEGORY: Engine/Hybrid System
SECTION: Emission Control
MARKET: USA and Mexico
COPYRIGHT: © 2022 Toyota, USA License Agreement TMS1002

APPLICABILITY

APPLICABILITY

YEAR(S) MODEL(S) ADDITIONAL INFORMATION
2019 - 2022 Avalon HV
2018 - 2023 Camry, Camry HV
2020 - 2022 Highlander HV
2019 - 2020 RAV4, RAV4 HV

INTRODUCTION

The purpose of this bulletin is to supplement the diagnostic and repair procedure in the Repair Manual for the subject Diagnostic Trouble Code (DTC). Some 2018 - 2023 model year Toyota vehicles equipped with an A25A-FKS or A25A-FXS engine may exhibit a MIL ON condition with DTC P042000 (Catalyst System Efficiency Below Threshold Bank 1) present. Follow the Repair Procedure in this bulletin to address this condition.

WARRANTY INFORMATION

For USA and Mexico Markets

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
N/A Not Applicable to Warranty - - - -

PARTS INFORMATION

For USA and Mexico Markets

PARTS INFORMATION

PART NUMBER PART NAME QTY
89467-42170
89467-33210
89467-06210
89467-06280
89467-0E250
89467-0E270
89467-0R100
89467-42190		 Sensor, Air Fuel Ratio 1

REQUIRED TOOLS & EQUIPMENT

REQUIRED TOOLS & EQUIPMENT

REQUIRED EQUIPMENT SUPPLIER PART NUMBER QTY
Techstream ADVI(1) ADE TSADVUNIT 1
Techstream 2.0 TS2UNIT
Techstream Lite TSLITEPDLR01
Techstream Lite (Green Cable) TSLP2DLR01
(1) Essential SST.
NOTE:
  • Only ONE of the Techstream units listed above is required.
  • Software version 17.20.013 or later is required.
  • Additional Techstream units may be ordered by calling Approved Dealer Equipment (ADE) at 1-800-368-6787 (USA) or 01-55-50103041 (Mexico).

REPAIR PROCEDURE

  1. Using Techstream, check for stored DTCs.

    Is DTC P042000 (Catalyst System Efficiency Below Threshold Bank 1) present?

    • YES  - Continue to step 2.
    • NO  - This bulletin does NOT apply. Continue diagnosis using the applicable Repair Manual.
  2. Are ANY other DTCs present?
    • YES  - Troubleshoot the other DTC(s) BEFORE continuing to step 3.
    • NO  - Continue to step 3.
  3. Read the freeze frame data for DTC P042000.
  4. Is the stored Long FT B1S2 1% or higher?

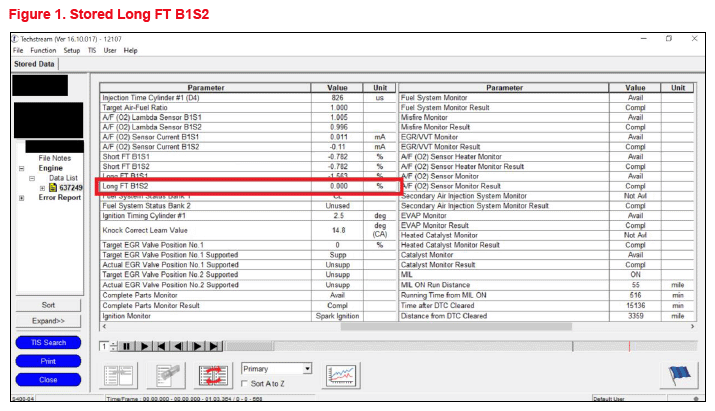

    G16279795
    • YES  - Continue to step 5.
    • NO  - This bulletin does NOT apply. Continue diagnosis using the applicable Repair Manual.
  5. Are there ANY exhaust gas leaks present?
    • YES  - This bulletin does NOT apply. Continue diagnosis using the applicable Repair Manual.
    • NO  - Continue to step 6.
  6. Replace the air fuel ratio sensor (sensor 2).

    Refer to TIS, applicable model and model year Repair Manual:

    • 2019 - 2022 Avalon HV:

      Engine/Hybrid Control - Engine Control -  "A25A-FXS (Engine Control): Air Fuel Ratio Sensor (for Sensor 2): Removal/Installation  "

    • 2018 - 2020 Camry:

      Engine/Hybrid Control - Engine Control  - "A25A-FKS (Engine Control): Air Fuel Ratio Sensor (for Sensor 2): Removal/Installation  "

    • 2021 - 2023 Camry:

      Engine/Hybrid Control - Engine Control  - "A25A-FKS (Engine Control): Air Fuel Ratio Sensor (for Sensor 2): Removal/Installation  "

    • 2018 - 2023 Camry HV:

      Engine/Hybrid Control - Engine Control  - "A25A-FXS (Engine Control): Air Fuel Ratio Sensor (for Sensor 2): Removal/Installation  "

    • 2020 - 2022 Highlander HV:

      Engine/Hybrid Control - Engine Control  - "A25A-FXS (Engine Control): Air Fuel Ratio Sensor (for Sensor 2): Removal/Installation  "

    • 2019 - 2020 RAV4:

      Engine/Hybrid Control - Engine Control  - "A25A-FKS (Engine Control): Air Fuel Ratio Sensor: Removal/Installation  "

    • 2019 - 2020 RAV4 HV:

      Engine/Hybrid Control - Engine Control  - "A25A-FXS (Engine Control): Air Fuel Ratio Sensor: Removal/Installation  "

  7. Using Techstream, clear DTC P042000.
  8. Confirm the malfunction has been repaired successfully.
    1. Drive the vehicle in accordance with the confirmation driving pattern described in the appropriate Repair Manual.
    2. Check for ANY DTCs and confirm the condition no longer exists.
