Inspection [12/2019 - ]: Procedure
- INSPECT BACK DOOR LOCK ASSEMBLY (w/o Power Back Door)
- Check the operation of the door lock motor.
- Move the door lock to the lock position.

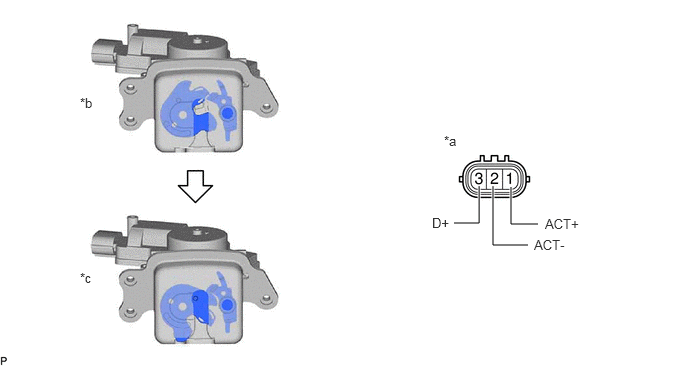

*a Component without harness connected
(Back Door Lock Assembly)*b Lock *c Unlock - - - Apply auxiliary battery voltage to the door lock motor and check the operation of the door lock motor.
OK
Auxiliary Battery Connection Result Auxiliary battery positive (+) → 1 (ACT+)
Auxiliary battery negative (-) → 2 (ACT-)Unlocks If the result is not as specified, replace the back door lock assembly.
- Move the door lock to the lock position.
- Check the operation of the door courtesy switch.
- Check the operation of the door lock motor.
- INSPECT BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/ Power Back Door)
- Apply auxiliary battery voltage to the door lock motor and check the operation of the door lock motor.
OK
Battery Connection Result Auxiliary battery positive (+) → 2 (M+)
Auxiliary battery negative (-) → 1 (M-)Latch turns to full-latch position (rotates counterclockwise) Auxiliary battery positive (+) → 1 (M-)
Auxiliary battery negative (-) → 2 (M+)Latch turns to open-latch position (rotates clockwise) If the result is not as specified, replace the back door lock assembly with courtesy light switch.

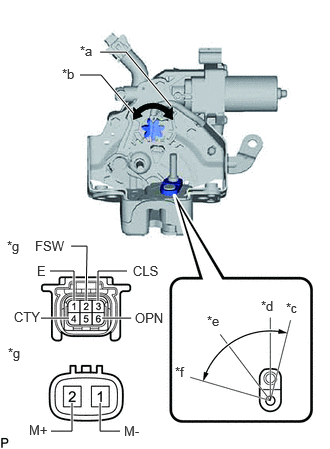

*a Clockwise *b Counterclockwise *c Over-latch *d Full-latch *e Half-latch *f Open-latch *g Component without harness connected
(Back Door Lock Assembly with Courtesy Light Switch) - Check the operation of the latch switch.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 (CLS) - 1 (E) Full-latch 10 kΩ or higher 3 (CLS) - 1 (E) Half-latch 10 kΩ or higher 3 (CLS) - 1 (E) Half-latch → Open-latch 10 kΩ or higher → Below 1 Ω 3 (CLS) - 1 (E) Open-latch Below 1 Ω Standard Resistance
Tester Connection Condition Specified Condition 3 (CLS) - 1 (E) Open-latch Below 1 Ω 3 (CLS) - 1 (E) Open-latch → Half-latch Below 1 Ω → 10 kΩ or higher 3 (CLS) - 1 (E) Half-latch 10 kΩ or higher 3 (CLS) - 1 (E) Full-latch 10 kΩ or higher 3 (CLS) - 1 (E) Over-latch 10 kΩ or higher If the result is not as specified, replace the back door lock assembly with courtesy light switch.
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the pawl switch.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (FSW) - 1 (E) Open-latch 10 kΩ or higher 2 (FSW) - 1 (E) Open-latch → Half-latch 10 kΩ or higher → Below 1 Ω → 10 kΩ or higher 2 (FSW) - 1 (E) Half-latch 10 kΩ or higher 2 (FSW) - 1 (E) Half-latch → Full-latch 10 kΩ or higher → Below 1 Ω → 10 kΩ or higher 2 (FSW) - 1 (E) Full-latch 10 kΩ or higher If the result is not as specified, replace the back door lock assembly with courtesy light switch.
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the back door courtesy switch.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 4 (CTY) - 1 (E) Open-latch Below 1 Ω 4 (CTY) - 1 (E) Half-latch Below 1 Ω 4 (CTY) - 1 (E) Half-latch → Full-latch Below 1 Ω → 10 kΩ or higher 4 (CTY) - 1 (E) Full-latch 10 kΩ or higher 4 (CTY) - 1 (E) Over-latch 10 kΩ or higher If the result is not as specified, replace the back door lock assembly with courtesy light switch.
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the selector switch.
- Measure the resistance according to the value(s) in the table below.

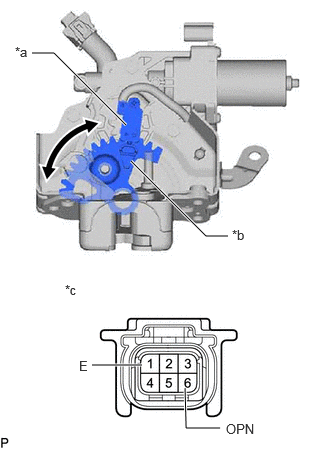

*a Selector Switch *b Selector Gear *c Component without harness connected
(Back Door Lock Assembly with Courtesy Light Switch)Standard Resistance
Tester Connection Condition Specified Condition 6 (OPN) - 1 (E) Selector Switch ON Below 1 Ω 6 (OPN) - 1 (E) Selector Switch OFF 10 kΩ or higher If the result is not as specified, replace the back door lock assembly with courtesy light switch.
- Measure the resistance according to the value(s) in the table below.
- Apply auxiliary battery voltage to the door lock motor and check the operation of the door lock motor.
