Power Back Door System
>>
DTC B2220-49: Back Door Motor Internal Electronic Failure [11/2023 - ]
>>

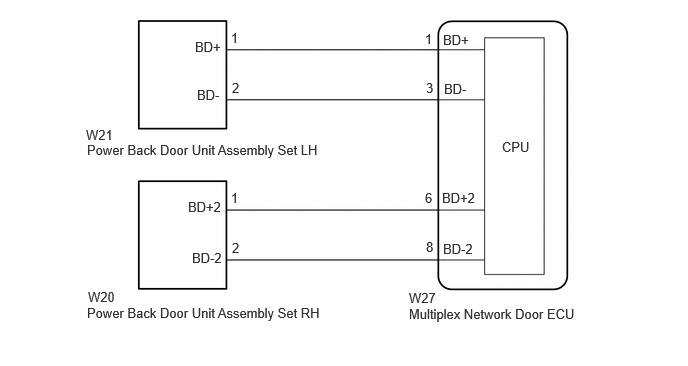

Wiring Diagram
DTC B2220-49: Back Door Motor Internal Electronic Failure [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
