Removal [11/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. DRAIN COOLANT (for Inverter)

    Refer to PROCEDURE - Step 1

  6. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  7. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  8. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 6

  9. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 7

  10. DISCONNECT NO. 1 INVERTER COOLING HOSE
    1. Slide the clip and disconnect the No. 1 inverter cooling hose from the motor cooling cooler.
      GTY924034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT NO. 5 INVERTER COOLING HOSE

    Refer to PROCEDURE - Step 29

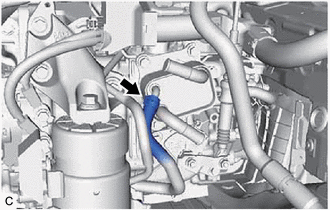

  12. DISCONNECT OUTLET MOTOR HOSE
    1. Slide the clip and disconnect the outlet motor hose from the motor cooling cooler.
      GTY1179001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

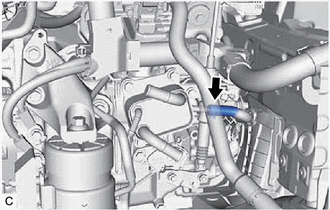

  13. DISCONNECT NO. 1 MOTOR COOLING HOSE
    1. Slide the clip and disconnect the No. 1 motor cooling hose from the motor cooling cooler.
      GTY1178999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE MOTOR COOLING COOLER
    1. Remove the 3 bolts and motor cooling cooler from the No. 1 transmission control cable bracket.
      GTY924005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
