Installation [12/2019 - ]: Procedure

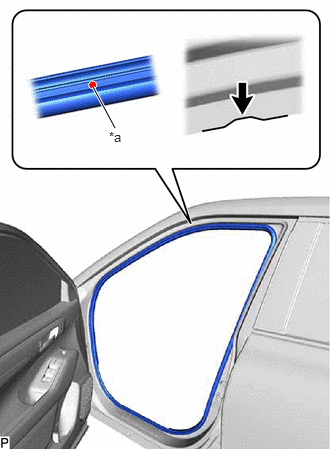

1. Align the paint mark on the front door opening trim weatherstrip with the cutout on the vehicle body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Paint Mark
   	Cutout

   NOTE:

   • Make sure that the paint mark is aligned with the cutout when installing the front door opening trim weatherstrip, otherwise water ingress may occur.
   • After installation, check that the corners fit correctly.

   HINT:

   • Make sure to install the part of the front door opening trim weatherstrip near the paint mark first.
   • The color of the paint marks on the front door opening trim weatherstrip LH and front door opening trim weatherstrip RH are different.

     Paint Mark

     Location	Color
     for LH Side	Blue
     for RH Side	Pink

Refer to PROCEDURE - Step 51 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 49 [10/2022 - ]

Refer to PROCEDURE - Step 52 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 50 [10/2022 - ]
