Installation [12/2019 - ]: Procedure

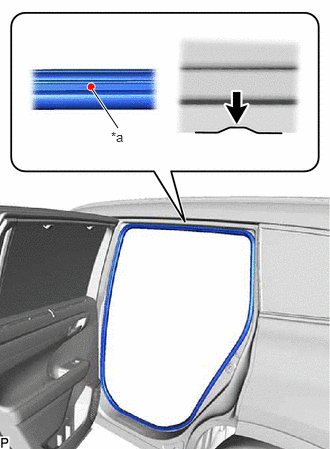

1. Align the paint mark on the rear door opening trim weatherstrip with the cutout on the vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Paint Mark
   	Cutout

   NOTE:

   • Make sure that the paint mark is aligned with the cutout when installing the rear door opening trim weatherstrip, otherwise water ingress may occur.
   • After installation, check that the corners fit correctly.

   HINT:

   • Make sure to install the part of the rear door opening trim weatherstrip near the paint mark first.
   • The color of the paint marks on the rear door opening trim weatherstrip LH and rear door opening trim weatherstrip RH are different.

     Paint Mark

     Location	Color
     for LH Side	Yellow
     for RH Side	Green

Refer to PROCEDURE - Step 47 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 45 [10/2022 - ]
