Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seats - Service Information (2 Of 3) >> REAR NO. 1 SEAT ASSEMBLY (for Captain Seat Type) >> Disassembly [12/2019 - ] >> Procedure

Disassembly [12/2019 - ]: Procedure

  1. REMOVE SEAT ADJUSTER COVER CAP
    1. Remove the 2 seat adjuster cover caps.
      GTY908070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration and remove the reclining adjuster release handle LH.
      GTY868836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  3. REMOVE REAR SEAT CUSHION UNDER COVER LH
    1. Disengage the claw, clip and guide to remove the rear seat cushion under cover LH.
      GTY908065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SEAT ADJUSTER COVER CAP LH
    1. Disengage the 2 claws and 2 guides to remove the seat adjuster cover cap LH.
      GTY893741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY LH
    1. Remove the 2 screws.
      GTY893758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides.
      GTY938426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the rear seat reclining control cable to remove the rear seat No. 1 lock control lever sub-assembly LH.
      GTY938427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY LH
    1. Remove the 2 screws.
      GTY938425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides.
      GTY893755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the rear No. 1 seat track control cable assembly LH to remove the rear seat No. 2 lock control lever sub-assembly LH.
      GTY893753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SEAT CUSHION MOULDING LH
    1. Disengage the 5 claws, clip and 14 guides as shown in the illustration to remove the rear seat cushion moulding LH.
      GTY853321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  8. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD
    1. Disengage the 2 hooks.
      GTY896820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 hooks.
      GTY896819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp.
      GTY944987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Seat Heater System:
      GTY939088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors.
      2. Disengage the 2 clamps.
    5. Disengage the 2 hooks.
      GTY896817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the hook.
      GTY857934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the 6 hooks and remove the separate type rear seat cushion cover with pad.
      GTY896816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER
    1. Disengage the 5 fasteners.
      GTY898367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
    2. Using a screwdriver, disengage the 14 claws as shown in the illustration and remove the separate type rear seat cushion cover from the rear seat cushion pad LH.
      GTY894659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  10. REMOVE SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 10

  11. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY LH (w/ Seat Heater System)
    1. Disconnect the connector.
      GTY896823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to remove the seat heater control sub-assembly LH.

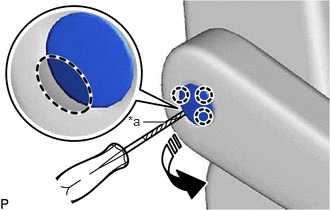

  12. REMOVE NO. 1 SEAT ARMREST CAP
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws as shown in the illustration and remove the No. 1 seat armrest cap.
      GTY845304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Place Hand Here
      Remove in this Direction
  13. REMOVE SEAT ARMREST ASSEMBLY LH
    1. Remove the bolt and 2 washers.
      GTY896787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the seat armrest assembly LH.
      GTY939080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR SEATBACK LOCK STRIKER COVER LH
    1. Disengage the claw and 2 guides as shown in the illustration to remove the rear seatback lock striker cover LH.
      GTY854669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  15. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH
    1. Remove the 2 screws.
      GTY939079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide as shown in the illustration.
      GTY875929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect the rear seat reclining control cable to remove the reclining remote control lever sub-assembly LH.
      GTY896776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR SEATBACK COVER LH
    1. Disengage the 2 claws as shown in the illustration.
      GTY896779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws as shown in the illustration to remove the rear seatback cover LH.
      GTY944545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  17. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH
    1. Open the 2 fasteners as shown in the illustration.
      GTY918290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
    2. Disengage the hook.
      GTY896798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 6 clips and 2 claws as shown in the illustration.
      GTY896797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 guides as shown in the illustration to remove the rear seatback board sub-assembly LH.
      GTY934140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  18. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD
    1. Disengage the 4 claws as shown in the illustration and remove the 2 rear seat headrest supports.
      GTY880406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the hook.
      GTY896760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the separate type rear seatback cover with pad.
  19. REMOVE SEPARATE TYPE REAR SEATBACK COVER
    1. Using a screwdriver, disengage the 6 claws as shown in the illustration and remove the separate type rear seatback cover from the separate type rear seatback pad.
      GTY942121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  20. REMOVE SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 17

  21. REMOVE RECLINING REMOTE CONTROL BEZEL LH
    1. Disengage the 2 claws and guide to remove the reclining remote control bezel LH.
      GTY896818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

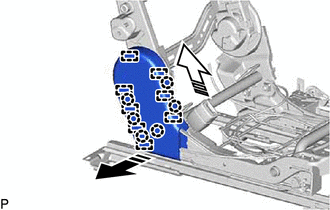

  22. REMOVE REAR SEAT CUSHION REAR MOULDING LH
    1. Disengage the 6 claws and 8 guides as shown in the illustration to remove the rear seat cushion rear moulding LH.
      GTY907311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  23. REMOVE REAR NO. 1 SEAT RECLINING COVER RH
    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 1 seat reclining cover RH.
      GTY919607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  24. REMOVE REAR SEAT CUSHION HINGE COVER LH
    1. Disengage the 3 claws as shown in the illustration to remove the rear seat cushion hinge cover LH.
      GTY933220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  25. REMOVE REAR SEAT INNER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 19

  26. REMOVE REAR NO. 1 SEAT RECLINING COVER LH
    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 1 seat reclining cover LH.
      GTY875981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  27. REMOVE RECLINING HINGE COVER LH
    1. Disengage the 4 claws and clip as shown in the illustration to remove the reclining hinge cover LH.
      GTY886203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  28. REMOVE REAR NO. 2 SEAT CUSHION HINGE UPPER COVER LH
    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 2 seat cushion hinge upper cover LH.
      GTY895939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  29. REMOVE REAR NO. 2 SEAT CUSHION HINGE UPPER COVER RH
    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 2 seat cushion hinge upper cover RH.
      GTY899896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  30. REMOVE REAR SEAT WIRE LH
    1. w/o Seat Heater System:
      GTY908098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 7 clamps and remove the rear seat wire LH.
    2. w/ Seat Heater System:
      GTY896768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 8 clamps and remove the rear seat wire LH.
  31. REMOVE REAR NO. 1 SEAT TRACK CONTROL CABLE ASSEMBLY LH
    1. Remove the 2 wire harness clamps.
      GTY843983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clamp Wire Harness Clamp
    2. Disengage the 2 clamps and remove the rear No. 1 seat track control cable assembly LH.
  32. REMOVE REAR SEAT RECLINING CONTROL CABLE
    1. Disengage the 10 clamps and cable clamp.
      GTY896763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp and remove the rear seat reclining control cable.
      GTY896766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE NO. 1 RECLINING CONTROL LINK SUB-ASSEMBLY LH
    1. Remove the 2 nuts and No. 1 reclining control link sub-assembly LH.
      GTY896870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 2 RECLINING CONTROL LINK SUB-ASSEMBLY LH
    1. Remove the 2 nuts and No. 2 reclining control link sub-assembly LH.
      GTY939099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

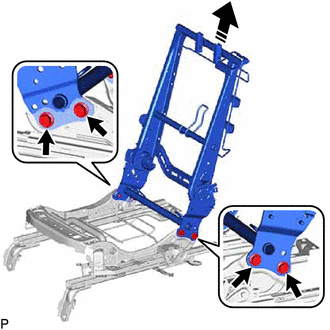

  35. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH
    1. Remove the 4 bolts.
      GTY872513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the rear seatback frame sub-assembly LH from the No. 1 seat cushion frame sub-assembly LH as shown in the illustration.
  36. REMOVE FRONT INNER SEAT TRACK UPPER RAIL BRACKET LH
    1. Remove the 2 nuts and front inner seat track upper rail bracket LH.
      GTY858490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY LH
    1. Remove the 4 nuts and rear seat cushion frame sub-assembly LH.
      GTY896869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
