Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR SEAT CUSHION UNDER COVER LH

    Refer to PROCEDURE - Step 3

  4. REMOVE SEAT ADJUSTER COVER CAP LH

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR SEAT CUSHION MOULDING LH

    Refer to PROCEDURE - Step 7

  8. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 8

  9. REMOVE NO. 1 SEAT ARMREST CAP

    Refer to PROCEDURE - Step 12

  10. REMOVE SEAT ARMREST ASSEMBLY LH

    Refer to PROCEDURE - Step 13

  11. REMOVE REAR SEATBACK LOCK STRIKER COVER LH

    Refer to PROCEDURE - Step 14

  12. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 15

  13. REMOVE REAR SEATBACK COVER LH

    Refer to PROCEDURE - Step 16

  14. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  15. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 18

  16. REMOVE SEPARATE TYPE REAR SEATBACK COVER

    Refer to PROCEDURE - Step 19

  17. REMOVE SEAT HEATER ASSEMBLY

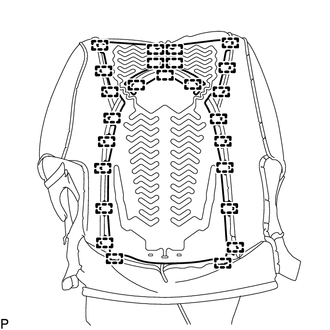

    1. Remove the 25 tag pins and seat heater assembly from the separate type rear seatback cover.
      GTY907796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
