Removal [12/2019 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 19 [11/2023 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SPARK PLUG

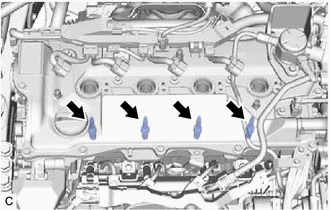

    1. GTY887739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 spark plugs from the cylinder head sub-assembly.

      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.
