Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 19 [11/2023 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

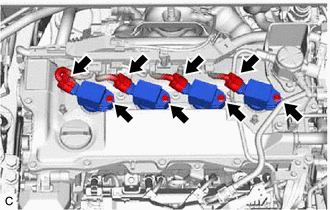

    1. GTY937088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the 4 ignition coil assembly connectors.

    2. Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
