Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SPARK PLUG

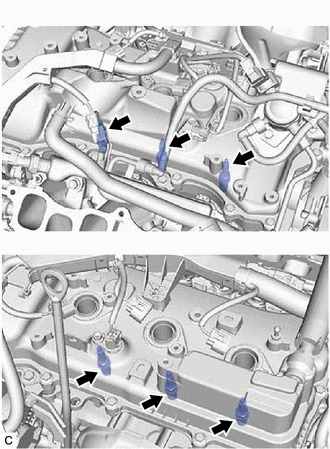

    1. Remove the 6 spark plugs from the cylinder head sub-assembly and cylinder head LH.
      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

      GTY888065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
