Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE IGNITION COIL ASSEMBLY

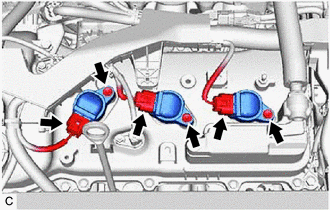

    1. Disconnect the 3 ignition coil assembly connectors.
      GTY888068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and 3 ignition coil assemblies from the cylinder head cover sub-assembly LH.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

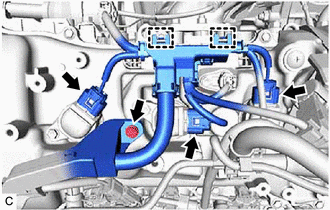

    3. Remove the bolt and separate the engine wire.
      GTY888069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 3 ignition coil assembly connectors and disengage the 2 wire harness clamps.

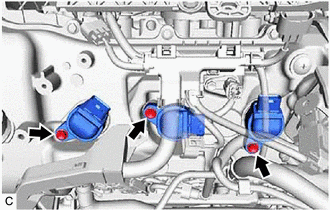

    5. Remove the 3 bolts and 3 ignition coil assemblies from the cylinder head cover sub-assembly.
      GTY888064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
