Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Connect the 5 connectors.

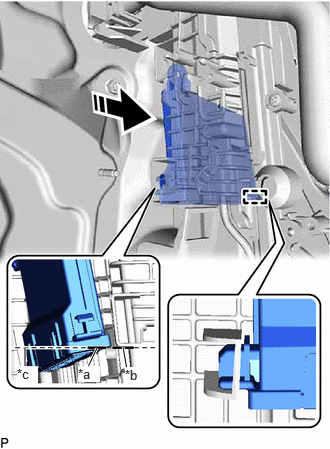

    2. Align the lower part of the air conditioning amplifier assembly with the rib of the air conditioner unit assembly and engage the guide as shown in the illustration.
      GTY840118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lower Part of Air Conditioning Amplifier Assembly
      *b Rib of Air Conditioner Unit Assembly
      *c Align
      Install in this Direction

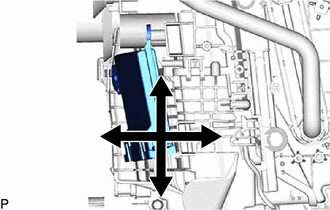

    3. Move the air conditioning amplifier assembly in each direction shown in the illustration to check that the guide is securely engaged.
      GTY918123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the air conditioning amplifier assembly with the screw.
    5. Engage the 2 clamps.
  2. INSTALL FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 4

  3. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 6

  4. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

    for 2GR-FKS:

    Refer to INSTALLATION [12/2019 - 10/2022]

    for A25A-FXS:

    Refer to INSTALLATION [12/2019 - ]

  5. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022]

  6. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022]
