Installation [12/2019 - 10/2022]: Procedure
- INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
- When installing a new instrument panel safety pad sub-assembly:

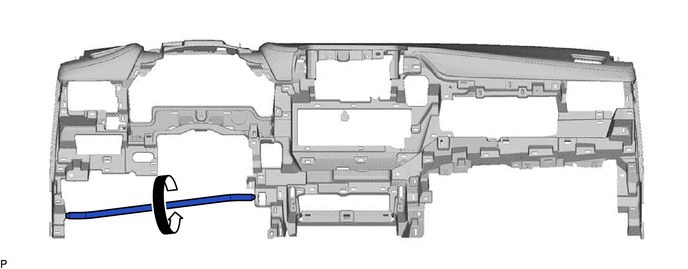

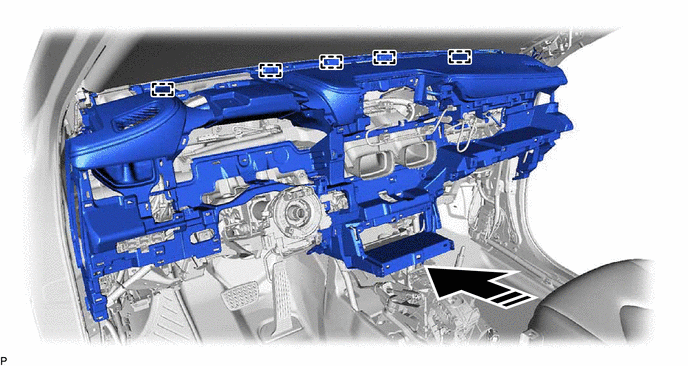

- Engage the 5 guides to temporarily install the instrument panel safety pad sub-assembly as shown in the illustration.

Install in this Direction - - NOTE:- Do not damage the instrument panel safety pad sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.

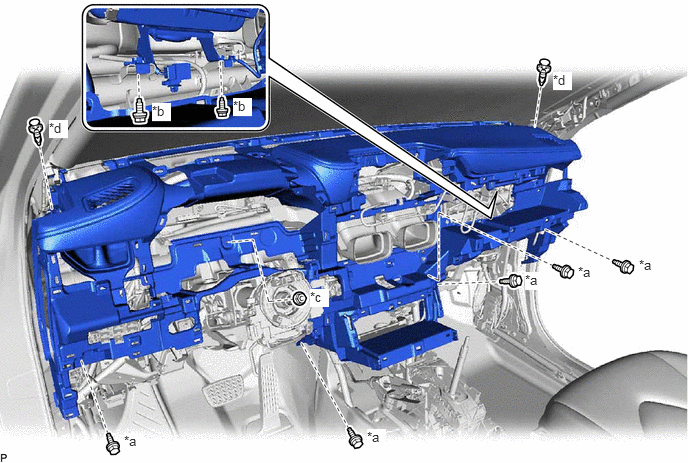

- Install the instrument panel safety pad sub-assembly with the 5 bolts <A>, 2 bolts <E> and nut <C>.
*a Bolt <A> *b Bolt <E> *c Nut <C> *d Clip Bolt <E>
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
- Install the 2 clips.
- Engage each clamp.

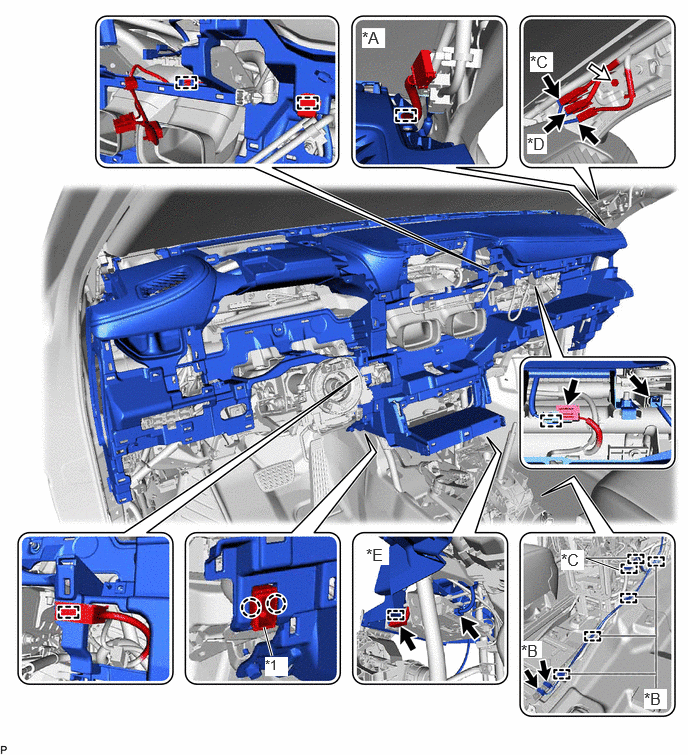

*A for 11 Speakers *B for 12.3 Inch Display *C w/ Rear Seat Entertainment System *D w/ Manual (SOS) Switch *E w/ Navigation System - - *1 Cooler (Room Temp. Sensor) Thermistor - - - Connect the airbag connector.
HINT:
Refer to How to Connect or Disconnect Airbag Connector.
Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2019 - 11/2023]
- Connect each connector.
- Install the bolt <F>.
Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)
- Engage the 2 claws to connect the cooler (room temp. sensor) thermistor.
- INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Manual (SOS) Switch)
Refer to PROCEDURE - Step 4

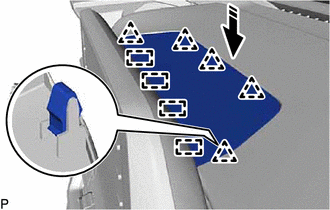

- INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

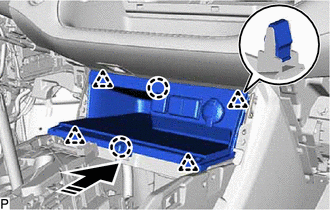

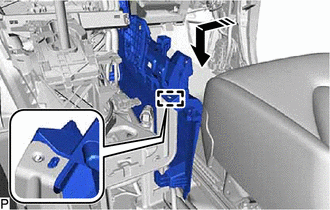

- INSTALL FRONT CONSOLE BOX INSERT

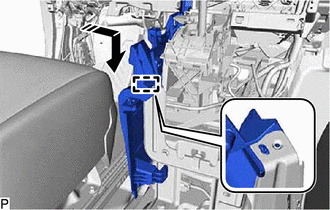

- INSTALL FRONT NO. 2 CONSOLE BOX INSERT

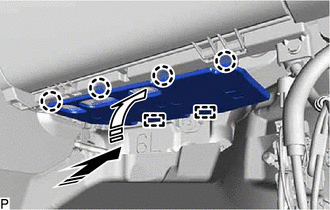

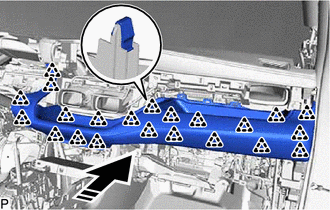

- INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

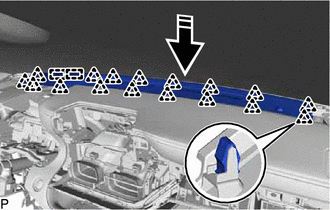

- INSTALL NO. 1 DEFROSTER NOZZLE GARNISH
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
Refer to PROCEDURE - Step 1

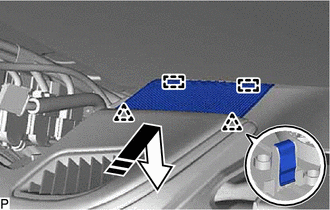

- INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL
- INSTALL FRONT PILLAR GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 49
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 1

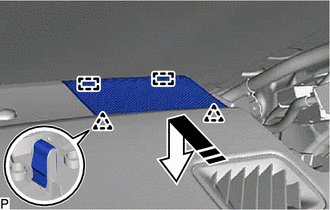

- INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL
- INSTALL FRONT PILLAR GARNISH ASSEMBLY LH
Refer to PROCEDURE - Step 49

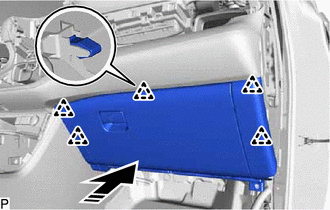

- INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
- Engage the clamp.
- Connect the connector.

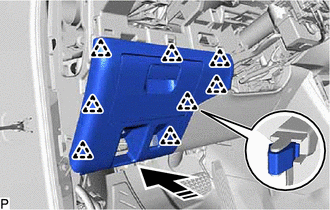

- Engage the 5 clips as shown in the illustration.

Install in this Direction - Install the 2 bolts <A>.
- Open the glove compartment door sub-assembly.
- Install the lower instrument panel sub-assembly with the 3 screws <D>.
- Close the glove compartment door sub-assembly.

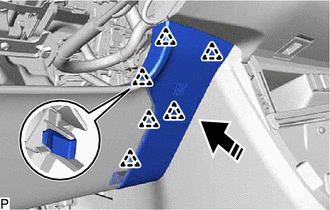

- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

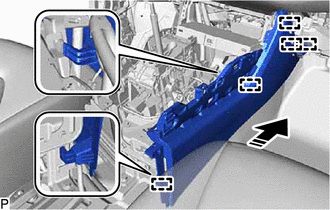

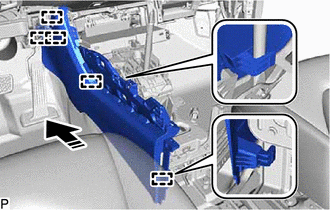

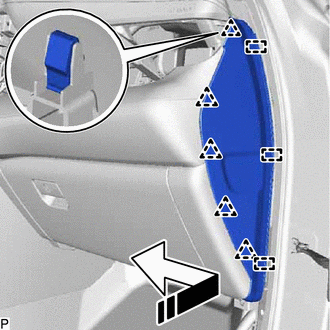

- INSTALL INSTRUMENT PANEL FINISH END PANEL RH
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 1
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 51
- INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 52
- INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (for 12.3 Inch Display)
Refer to PROCEDURE - Step 10
- INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
- INSTALL RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)
Refer to PROCEDURE - Step 5
- INSTALL MULTI-DISPLAY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)
Refer to PROCEDURE - Step 4
- INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
- INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 SWITCH HOLE BASE

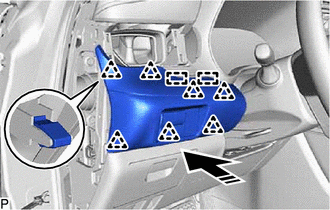

- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

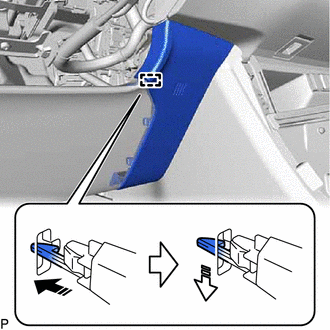

- CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Engage the 2 guides and claw to connect the hood lock control lever sub-assembly.

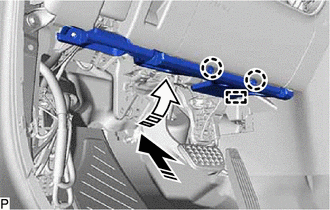

- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL TURN SIGNAL SWITCH
Refer to PROCEDURE - Step 1
- INSTALL UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 9 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 9 [10/2021 - 10/2022]
- INSTALL LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 10 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 10 [10/2021 - 10/2022]
- INSTALL STEERING WHEEL ASSEMBLY
Refer to PROCEDURE - Step 4
- INSTALL HORN BUTTON ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 1

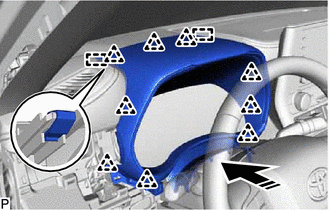

- INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
- INSTALL TRIP SWITCH
Refer to PROCEDURE - Step 1

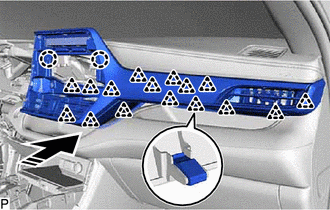

- INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

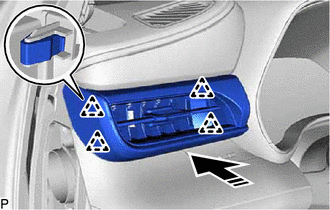

- INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

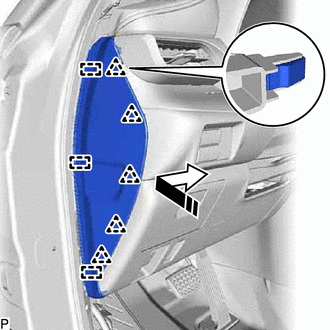

- INSTALL INSTRUMENT PANEL FINISH END PANEL LH
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 51
- INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 52
- INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [12/2019 - 10/2022]
