Installation [12/2019 - ]: Procedure

  1. INSTALL TRIP SWITCH
    1. Connect the connector.

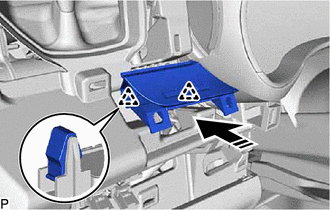

    2. Engage the 2 clips as shown in the illustration to install the trip switch.
      GTY895923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 38 [10/2022 - ]

  3. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 40 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - ]

  4. INSTALL INSTRUMENT PANEL FINISH END PANEL LH

    Refer to PROCEDURE - Step 41 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 40 [10/2022 - ]

  5. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1
