Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL MULTI-DISPLAY ASSEMBLY
  2. INSTALL TELLTALE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL MULTI-DISPLAY WITH AIR CONDITIONING CONTROL
    1. Engage the 2 clamps.
    2. Connect each connector.

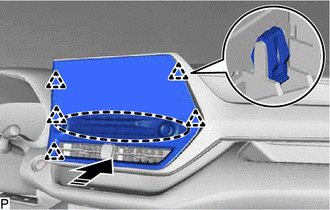

    3. Push the multi-display with air conditioning control as shown in the illustration to engage the 5 clips.
      GTY896314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Do Not Push this Area
      Install in this Direction
    4. Install the multi-display with air conditioning control with the 2 bolts.
  5. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24
