Installation [12/2019 - ]: Procedure

INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

NOTE:

Do not touch the speaker cone.

Install the front No. 2 speaker assembly with the 2 screws.

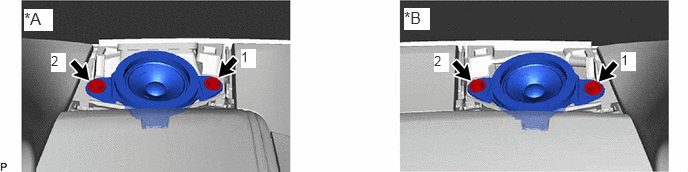

Fig 1: Front No. 2 Speaker Assembly Screws Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for LH Side

for RH Side

HINT:

Install the screws in the order shown in the illustration.

INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL
Refer to PROCEDURE - Step 12 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - ]
