Installation [12/2019 - 11/2023]: Procedure

  1. INSTALL NO. 2 INSTRUMENT PANEL WIRE
    1. Connect the 2 airbag connectors of the No. 2 instrument panel wire to the instrument panel passenger airbag assembly.
      GTY907528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When connecting any airbag connector, take care not to damage the airbag wire harness.
      • Be sure to only connect the connectors to each corresponding color.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector.

      Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2019 - 11/2023]

    2. Connect the No. 2 instrument panel wire to the wire harness clamp.
  2. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

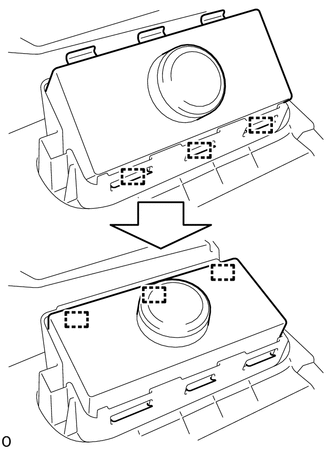

    1. Engage the 3 hooks.
      GTY813686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push in the instrument panel passenger airbag assembly to engage the 3 hooks.
    3. Install the instrument panel passenger airbag assembly with the 2 screws.
      GTY835729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  4. CONNECT NO. 2 INSTRUMENT PANEL WIRE
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Connect the No. 2 instrument panel wire.
      GTY907527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector.

      Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2019 - 11/2023]

  5. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Manual (SOS) Switch)

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
