Disposal [12/2019 - 11/2023]: Procedure

  1. PRECAUTION
    WARNING:
    • An airbag or pretensioner may be accidentally deployed by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.
    • Never dispose of a curtain shield airbag assembly with an undeployed airbag.
      GTY580271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The airbag produces an exploding sound when it is deployed, so perform the operation outdoors where it will not disturb nearby residents.
      GTY572529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • When deploying the airbag, always use the specified SST (SRS airbag deployment tool). Perform the operation in a place away from electrical noise.
    • When deploying the airbag, perform the operation at least 10 m (32.8 ft.) away from the curtain shield airbag assembly.
    • The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
    • Use gloves and safety glasses when handling a curtain shield airbag assembly with a deployed airbag.
    • Do not apply water, etc. to a curtain shield airbag assembly with a deployed airbag.
    • Always wash your hands with water after completing the operation.

    HINT:

    When scrapping a vehicle equipped with an SRS or disposing of the curtain shield airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

  2. DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (When Installed to Vehicle)
    NOTE:
    • When disposing of a curtain shield airbag assembly, never use the customer's vehicle to deploy the airbag.
    • Be sure to perform the following procedure when deploying the airbag.

    HINT:

    Prepare an auxiliary battery as the power source to deploy the airbag.

    1. Check the function of SST.

      See step  2

      GTY446883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09082-00700
    2. Refer to Precaution.

      Refer to PRECAUTION [12/2019 - 11/2023]

    3. Remove the battery service hole cover (for HV Model).

      Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 11/2023]

    4. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the roof headlining assembly.

      Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

    6. Disconnect the curtain shield airbag assembly connector.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector.

      Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2019 - 11/2023]

    7. Install SST.
      WARNING:

      Check that there is no looseness in the curtain shield airbag assembly.

      GTY546111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

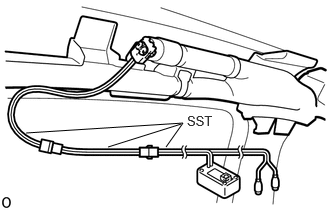

      1. After connecting the following SST to each other, connect them to the curtain shield airbag assembly.
        GTY859558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09082-00700
        • SST: 09082-00802
          1. 09082-10801
          2. 09082-20801
        NOTE:

        To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

      2. Move SST at least 10 m (32.8 ft.) away from the rear side window of the vehicle.
        GTY428457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Auxiliary Battery
        *b 10 m (32.8 ft.) or more
      3. Maintaining sufficient clearance for the SST wire harness in the rear side window, close all doors and windows of the vehicle.
        NOTE:

        Take care not to damage the SST wire harness.

      4. Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.
    8. Deploy the airbag.
      1. Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.
      2. Press the SST activation switch to deploy the airbag.
        WARNING:
        • Before deployment, make sure that no one is inside or near the vehicle.
          GTY577536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

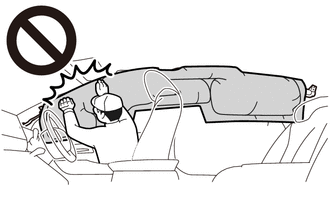

        • The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
          GTY580290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

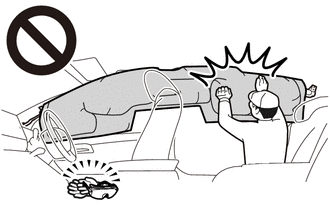

        • Use gloves and safety glasses when handling a curtain shield airbag assembly with a deployed airbag.
          GTY574804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

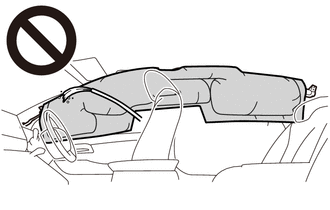

        • Do not apply water, etc. to a curtain shield airbag assembly with a deployed airbag.
          GTY580287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • Always wash your hands with water after completing the operation.

        HINT:

        The airbag is deployed as the LED of the SST activation switch comes on.

  3. DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (When not Installed to Vehicle)
    NOTE:

    Be sure to perform the following procedure when deploying the airbag.

    HINT:

    Prepare an auxiliary battery as the power source to deploy the airbag.

    1. Check the function of SST.

      See step  3

      GTY446883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09082-00700
    2. Remove the curtain shield airbag assembly.

      Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

      WARNING:
      • Before removing the curtain shield airbag assembly, wait at least 90 seconds after turning the ignition switch off and disconnecting the cable from the negative (-) auxiliary battery terminal.
      • When storing the curtain shield airbag assembly, keep the airbag deployment side facing upward.
        GTY806487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Deployment Side
      GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Cut off the deployment section of the curtain shield airbag assembly.
      GTY317382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using braided wire, tie down the curtain shield airbag assembly to an unneeded tire.
      GTY430873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Diameter
      *b Stripped Wire Cross Sectional Area

      Wire

      Stripped Wire Cross Sectional Area

      1.25 mm2 (0.0019 in.2 ) or more

      WARNING:

      If the wire is too thin or an alternative object is used to tie down the curtain shield airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross sectional area of at least 1.25 mm2 (0.0019 in.2 ).

      HINT:

      To calculate the cross sectional area of the stripped wire:

      Cross sectional area = 3.14 x (Diameter)2 / 4

      1. Position the curtain shield airbag assembly inside the tire as shown in the illustration.
        GTY442516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Width
        *b Inner Diameter

        Minimum Tire Size

        Width

        185 mm (7.28 in.)

        Inner Diameter

        360 mm (1.18 ft.)

        WARNING:

        Make sure that the wires are tight. If there is slack in the wires, the curtain shield airbag assembly may break loose when the airbag is deployed.

        NOTE:

        The tire may be damaged by the airbag deployment, so use an unneeded tire.

    5. Install SST.
      1. After connecting the following SST to each other, connect them to the curtain shield airbag assembly.
        GTY817103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09082-00802
          1. 09082-10801
          2. 09082-20801
    6. Place the tires.
      WARNING:

      Do not face the deployment side of the curtain shield airbag assembly toward the ground.

      GTY761732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

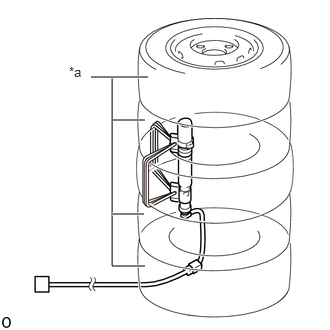

      1. Place at least 2 tires under the tire to which the curtain shield airbag assembly is tied.

        Minimum Tire Size

        Width

        185 mm (7.28 in.)

        Inner Diameter

        360 mm (1.18 ft.)

        GTY796328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Tires (2 or more)
        NOTE:

        Do not place the SST connector under the tire because it could be damaged.

      2. Place at least 2 tires onto the tire to which the curtain shield airbag assembly is tied. The top tire should have a wheel installed.
        NOTE:

        The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

      3. Tie the tires together with 2 wires.
        GTY307039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        WARNING:

        Make sure that the wires are tight. Looseness in the wires will result in the tires breaking loose when the airbag is deployed.

    7. Install SST.

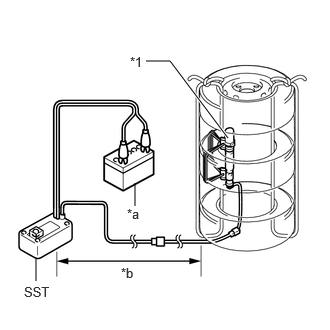

      1. Connect the SST connector.
        GTY941837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Curtain Shield Airbag Assembly
        *a Auxiliary Battery
        *b 10 m (32.8 ft.) or more
        • SST: 09082-00700
        NOTE:

        To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.

      2. Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.
    8. Deploy the airbag.
      1. Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.
      2. Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the curtain shield airbag assembly is tied.
      3. Press the SST activation switch to deploy the airbag.
        WARNING:

        Before deployment, make sure that no one is near the airbag.

        GTY571209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        The airbag is deployed as the LED of the SST activation switch comes on.

    9. Dispose of the curtain shield airbag assembly.
      WARNING:
      • The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
        GTY546540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Use gloves and safety glasses when handling a curtain shield airbag assembly with a deployed airbag.
        GTY546538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Do not apply water, etc. to a curtain shield airbag assembly with a deployed airbag.
        GTY546541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Always wash your hands with water after completing the operation.
      1. Remove the curtain shield airbag assembly from the tire.
      2. Place the curtain shield airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
