Removal [11/2023 - ]: Procedure
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing.
Refer to PRECAUTION [11/2023 - ]
NOTE:After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY
Refer to REMOVAL [11/2023 - ]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for T24A-FTS: Refer to PROCEDURE - Step 2
for A25A-FXS: Refer to PROCEDURE - Step 3
- REMOVE REAR AIRBAG SENSOR
- Check that the ignition switch is off.
- Check that the cable is disconnected from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Disconnect the connector from the rear airbag sensor.NOTE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
HINT:
Refer to How to Connect or Disconnect Airbag Connector.
Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2023 - ]

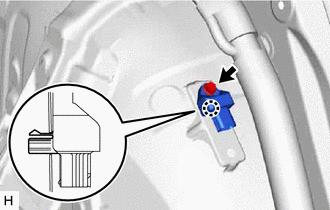

- Remove the bolt and disengage the claw to remove the rear airbag sensor.
