Installation [12/2019 - 10/2021]: Procedure

  1. INSTALL REAR SEAT OUTER BELT ASSEMBLY

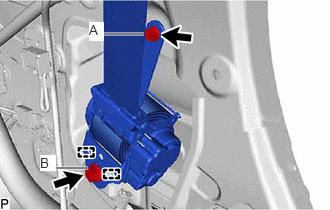

    1. Engage the 2 guides.
      GTY895379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the rear seat outer belt assembly with the 2 bolts.
    3. Fully tighten the bolt (A) first, then the bolt (B).

      Bolt (A)

      Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

      Bolt (B)

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    4. Connect the shoulder anchor of the rear seat outer belt assembly with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  2. INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for RH Side)

    w/ Rear Automatic Air Conditioning System

    Refer to PROCEDURE - Step 37

  3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 33

  4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 23

  5. INSTALL QUARTER PILLAR GARNISH

    Refer to PROCEDURE - Step 22

  6. INSTALL ROPE HOOK

    Refer to PROCEDURE - Step 24

  7. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 25

  8. INSTALL DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 36

  9. CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 27

  10. INSTALL NO. 2 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 28

  11. CONNECT REAR SEAT OUTER BELT ASSEMBLY

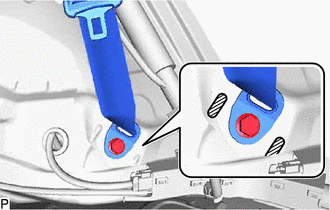

    1. Connect the floor anchor of the rear seat outer belt assembly with the bolt.
      GTY913931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Parts

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.

  12. INSTALL FRONT DECK SIDE TRIM COVER RH (for RH Side)

    Refer to PROCEDURE - Step 41

  13. INSTALL FRONT DECK SIDE TRIM COVER LH (for LH Side)

    Refer to PROCEDURE - Step 30

  14. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 1

  15. INSTALL REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 47

  16. INSTALL REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 48

  17. INSTALL REAR NO. 2 SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]

  18. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 65

  19. INSTALL DECK SIDE TRIM BOX LH (w/o Woofer)

    Refer to PROCEDURE - Step 66

  20. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 67

  21. INSTALL BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 68

  22. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 69

  23. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY (w/o Woofer)

    Refer to PROCEDURE - Step 70

  24. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 71
