Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL CONSOLE BOX ASSEMBLY

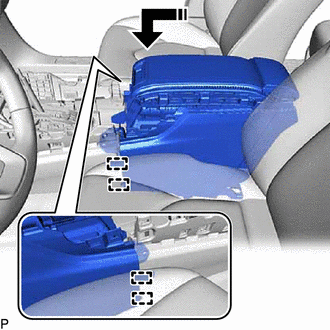

    1. Engage the 4 guides as shown in the illustration.
      GTY886310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect each connector.
    3. Install the console box assembly with the 4 bolts and 2 screws.
  2. INSTALL NO. 2 CONSOLE BOX HOLE COVER
    1. w/o Rear Seat Entertainment System:
      1. Connect each connector.

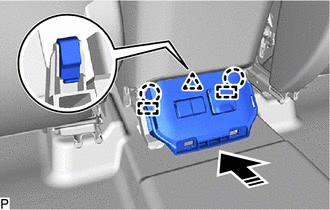

      2. Engage the 2 guides, clip and 2 claws as shown in the illustration to install the No. 2 console box hole cover.
        GTY1017023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
    2. w/ Rear Seat Entertainment System:
      1. Engage the 2 claws.
      2. Connect each connector.

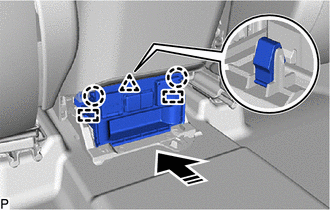

      3. Engage the 2 guides, clip and 2 claws as shown in the illustration to install the No. 2 console box hole cover.
        GTY1017159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
  3. INSTALL REAR CONSOLE LOWER BOX
    1. w/o Rear Seat Entertainment System:

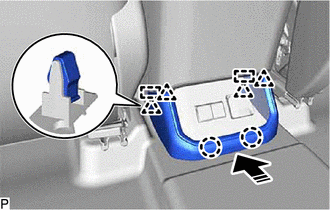

      1. Engage the 2 guides, 4 clips and 2 claws as shown in the illustration to install the rear console lower box.
        GTY930757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
    2. w/ Rear Seat Entertainment System:

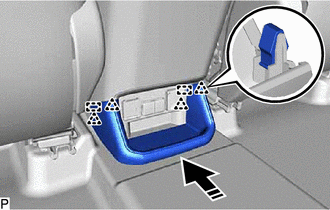

      1. Engage the 2 guides and 4 clips as shown in the illustration to install the rear console lower box.
        GTY929187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
  4. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

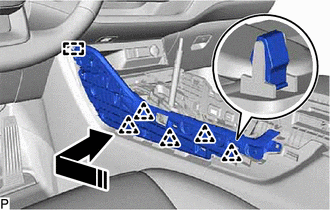

    1. Engage the guide and 5 clips as shown in the illustration.
      GTY849280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the No. 2 instrument panel garnish sub-assembly with the screw.
  5. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

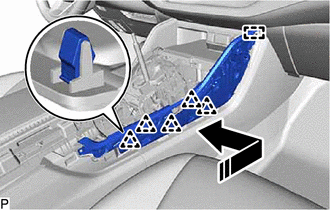

    1. Engage the guide and 5 clips as shown in the illustration.
      GTY940342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the No. 1 instrument panel garnish sub-assembly with the screw.
  6. INSTALL NO. 2 LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY

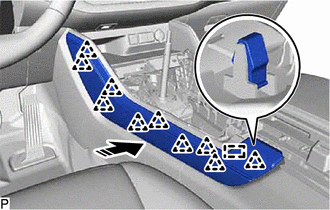

    1. Engage the guide and 10 clips as shown in the illustration to install the No. 2 lower instrument panel pad sub-assembly.
      GTY886311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  7. INSTALL NO. 1 LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY

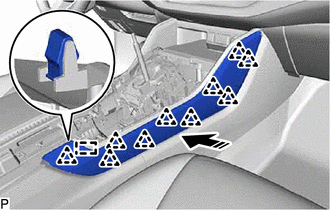

    1. Engage the guide and 10 clips as shown in the illustration to install the No. 1 lower instrument panel pad sub-assembly.
      GTY876567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  8. INSTALL CONSOLE BOX CUP HOLDER
    1. Engage the 2 claws.
    2. Install the console box cup holder with the 4 screws.
  9. INSTALL CONSOLE PANEL SUB-ASSEMBLY
    1. Connect each connector.

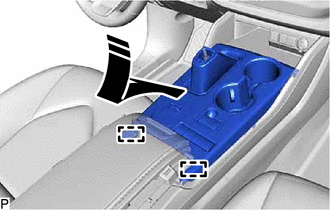

    2. Engage the 2 guides as shown in the illustration.
      GTY844322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the 2 clips.

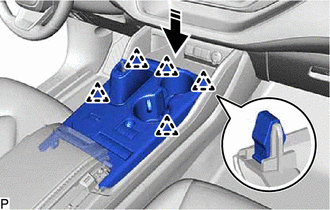

    4. Engage the 5 clips as shown in the illustration to install the console panel sub-assembly.
      GTY915329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    for UA80E: Refer to PROCEDURE - Step 1

    for UA80F: Refer to PROCEDURE - Step 1

    for P810: Refer to PROCEDURE - Step 1

  11. INSTALL FRONT CONSOLE BOX COVER

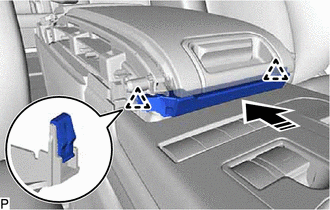

    1. Engage the 2 clips as shown in the illustration to install the front console box cover.
      GTY905916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  12. INSTALL CONSOLE BOX CUSHION

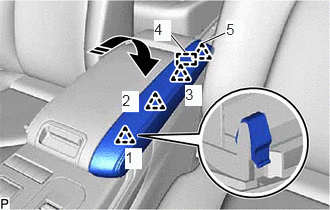

    1. Engage the guide and 4 clips in the order shown in the illustration to install the console box cushion.
      GTY894067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL NO. 2 CONSOLE BOX CUSHION

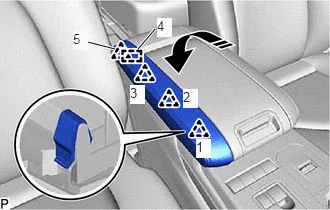

    1. Engage the guide and 4 clips in the order shown in the illustration to install the No. 2 console box cushion.
      GTY933004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
