Removal [12/2019 - 10/2022]: Procedure

  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT LOCK RELEASE BUTTON COVER

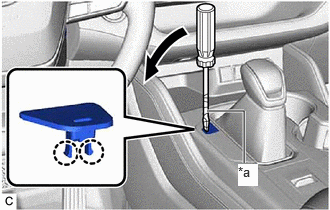

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the shift position indicator.
      GTY905238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the shift lock release button cover and shift position indicator.

  3. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  4. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 20

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  6. REMOVE FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 42

  7. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    NOTE:

    Before disconnecting the transmission control cable assembly, check that the shift lever is in N.

    1. Disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY943719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

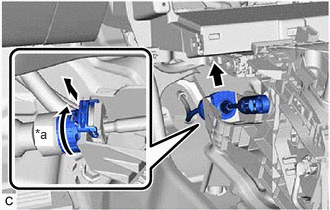

    2. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY858617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Counterclockwise
  8. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

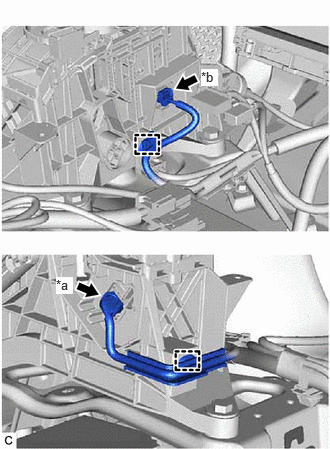

    1. Disconnect the transmission control switch connector.
      GTY929506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Control Switch Connector
      *b Shift Lock Control ECU Connector
    2. Disconnect the shift lock control ECU connector.
    3. Disengage the 2 clamps to disconnect the wire harness from the transmission floor shift assembly.

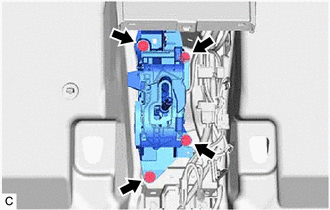

    4. Remove the 4 bolts and transmission floor shift assembly from the shift and select lever support.
      GTY917658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
