Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL [12/2019 - 09/2020] , or refer to REMOVAL [09/2020 - 10/2022]

  2. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 25 [09/2020 - 10/2022]

  3. REMOVE TRANSFER ASSEMBLY
    1. Remove the 8 nuts and transfer assembly from the automatic transaxle assembly.

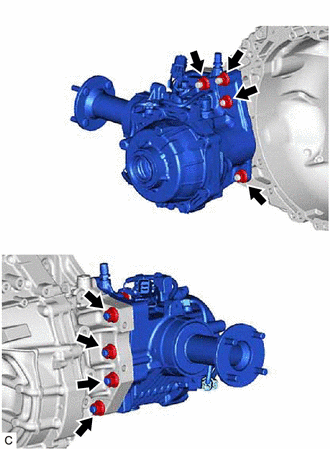

      GTY918109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
