Removal [09/2020 - 10/2022]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL
  2. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)
    1. Disengage the wire harness clamp and disconnect the vacuum switching valve (for active control engine mount system) connector.

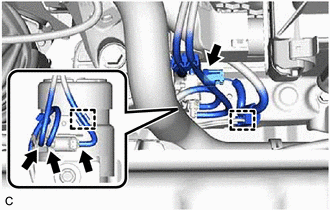

      GTY888050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the vacuum hose clamp.
    3. Disconnect the 3 vacuum hoses from the vacuum switching valve (for active control engine mount system).
    4. Remove the nut and vacuum switching valve (for active control engine mount system) from the front engine mounting insulator.

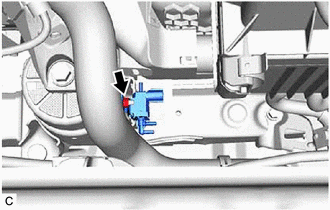

      GTY888051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
