Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL ACCELERATOR PEDAL

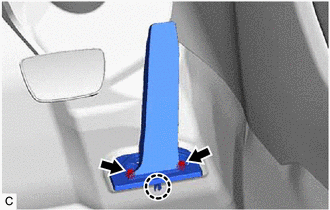

    1. Engage the claw to install the accelerator pedal.
      GTY888079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 bolts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  2. INSTALL ACCELERATOR PEDAL PAD
    1. Engage the 4 claws to install the accelerator pedal pad to the accelerator pedal.
  3. INSTALL ACCELERATOR PEDAL (W/SENSOR) ROD ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal sensor assembly.
    • Do not disassemble the accelerator pedal sensor assembly.
    • This accelerator pedal sensor assembly does not require lubrication.
    • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.
    1. Connect the rod of the accelerator pedal sensor assembly to the accelerator pedal and install the accelerator pedal sensor assembly with the 3 nuts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

    2. Connect the accelerator pedal sensor assembly connector.
  4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29

  5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 51

  6. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 52
