Installation [12/2019 - ]: Procedure

1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.
2. Remove the 2 bolts and separate the rear lower shock absorber bracket sub-assembly from the rear axle carrier sub-assembly.

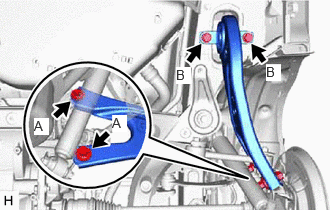

3. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts (A) and 2 washers.

   Torque: 150 N.m (1530 kgf/cm, 111 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Install the rear trailing arm assembly to the vehicle with the 2 bolts (B).

   Torque: 120 N.m (1224 kgf/cm, 89 ft.lbf)

5. Install the rear lower shock absorber bracket sub-assembly to the rear axle carrier sub-assembly with the 2 bolts.

   Torque: 147 N.m (1499 kgf/cm, 108 ft.lbf)

for 2WD: Refer to PROCEDURE - Step 8

for AWD: Refer to PROCEDURE - Step 9

See step  9 [12/2019 - 10/2022], or see step  9 [10/2022 - ]

Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

Refer to ADJUSTMENT [12/2019 - 09/2020] , or refer to ADJUSTMENT [09/2020 - 10/2022] , or refer to ADJUSTMENT [10/2022 - 11/2023] , or refer to ADJUSTMENT [11/2023 - 11/2024] , or refer to ADJUSTMENT [11/2024 - ]
