Removal [12/2019 - ]: Procedure

  1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  2. REMOVE OUTER MIRROR SWITCH ASSEMBLY

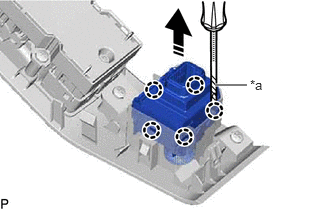

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 5 claws and remove the outer mirror switch assembly as shown in the illustration.
      GTY887532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
