Installation [12/2019 - ]: Procedure

  1. INSTALL OUTER MIRROR SWITCH ASSEMBLY

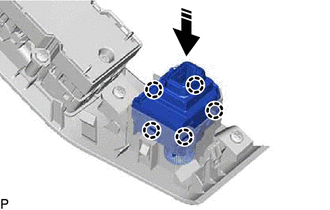

    1. Engage the 5 claws to install the outer mirror switch assembly as shown in the illustration.
      GTY936352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 42 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 42 [10/2022 - ]
