Reassembly [10/2022 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
- INSTALL FRONT DOOR WEATHERSTRIP
- INSTALL FRONT DOOR CHECK ASSEMBLY
- Clean the bolt hole in the vehicle body.
- Clean the threads of the bolt.
- Apply adhesive to the threads of the bolt.
Adhesive
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

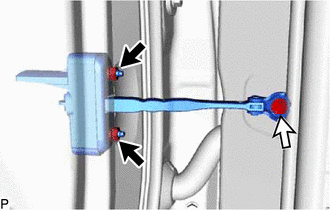

- Install the front door check assembly with the 2 nuts and bolt.

Nut
Bolt Bolt
Torque: 27 N.m (275 kgf/cm, 20 ft.lbf)
Nut
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
- INSTALL FRONT DOOR DUST PROOF SEAL
- INSTALL FRONT DOOR UPPER OUTSIDE MOULDING PAD
Refer to PROCEDURE - Step 4 [09/2020 - 11/2024] , or refer to PROCEDURE - Step 4 [11/2024 - ]
- INSTALL FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY
Refer to PROCEDURE - Step 1

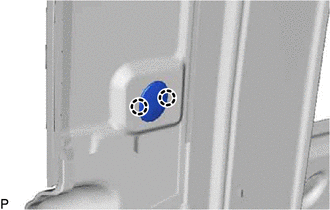

- INSTALL FRONT DOOR PANEL CUSHION
- INSTALL DOOR WINDOW FRAME MOULDING CLIP
- INSTALL FRONT DOOR FRONT LOWER FRAME UPPER COVER
Refer to PROCEDURE - Step 1
- INSTALL FRONT DOOR UPPER WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 1

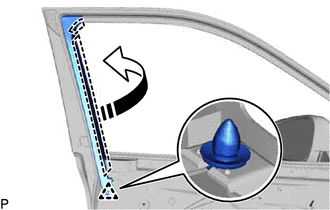

- INSTALL FRONT DOOR WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 2
- INSTALL FRONT DOOR BELT MOULDING ASSEMBLY
Refer to PROCEDURE - Step 1

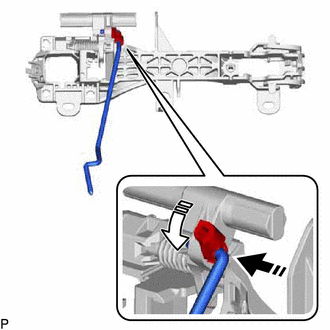

- INSTALL FRONT DOOR LOCK OPEN ROD
- INSTALL FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
- Apply MP grease to the sliding parts on the front door outside handle frame sub-assembly.

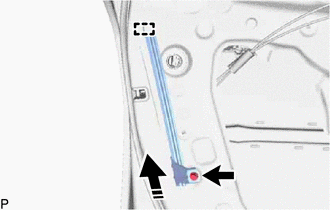

- Engage the guide and claw as shown in the illustration.

Install in this Direction - Using a T30 "TORX" socket wrench, install the front door outside handle frame sub-assembly with the screw.
Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)
- Engage the clamp.
- INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY
Refer to PROCEDURE - Step 5
- INSTALL FRONT DOOR REAR OUTSIDE HANDLE PAD
- INSTALL FRONT DOOR FRONT OUTSIDE HANDLE PAD
- INSTALL FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
- INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)

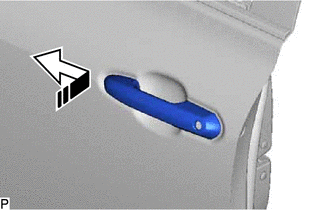

- INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY

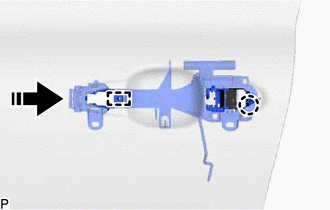

- Insert the front end of the front door outside handle assembly into the front door outside handle frame sub-assembly.

Install in this Direction - Insert the rear end of the front door outside handle assembly into the front door outside handle frame sub-assembly, then slide the front door outside handle assembly toward the front of the vehicle to install it.

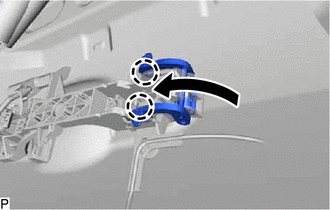

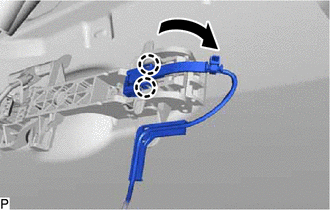

- Move the lever as shown in the illustration and engage the 2 claws to lock the front door outside handle assembly.
- Connect the connector.

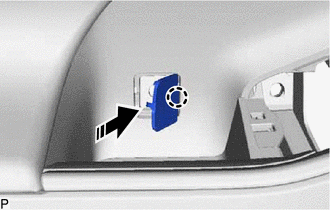

- Engage the 2 claws as shown in the illustration.

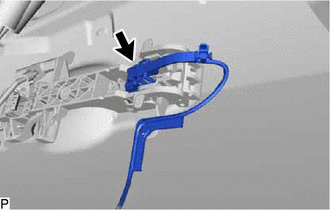

- Insert the front end of the front door outside handle assembly into the front door outside handle frame sub-assembly.
- INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

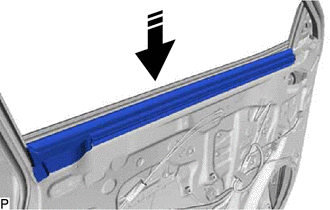

- INSTALL FRONT DOOR GLASS RUN

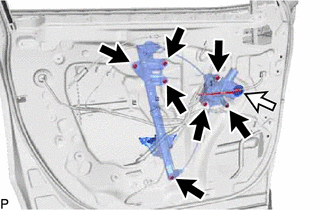

- INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY
- INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
- for Driver Side:
- Connect the power window regulator master switch assembly.
- for Front Passenger Side:
- Connect the power window regulator switch assembly.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the ignition switch to ON.
- Move the front door window regulator assembly so that the door glass bolt holes can be seen.
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- for Driver Side:
- Disconnect the power window regulator master switch assembly.
- for Front Passenger Side:
- Disconnect the power window regulator switch assembly.

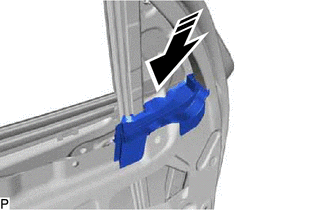

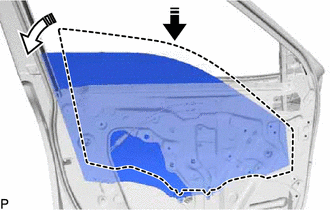

- Insert the front door glass sub-assembly into the front door panel along the front door glass run as shown in the illustration.

Install in this Direction (1)

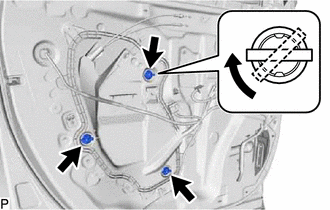

Install in this Direction (2) - Install the front door glass sub-assembly with the 2 bolts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
- Install the hole plug.
- for Driver Side:
- INSTALL SIDE AIRBAG SENSOR ASSEMBLY
Refer to PROCEDURE - Step 1 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]
- INSTALL FRONT DOOR SERVICE HOLE COVER
- INSTALL FRONT DOOR WEATHERSTRIP CLIP
- INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL FRONT DOOR PANEL PROTECTOR
- INSTALL FRONT DOOR VENT SEAL
- INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
- INSTALL OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER
Refer to PROCEDURE - Step 1
- INSTALL OUTER MIRROR INSTALL HOLE COVER
Refer to PROCEDURE - Step 2
- INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Memory)
Refer to PROCEDURE - Step 1
- INSTALL DOOR FRAME GARNISH
- INSTALL SEAT MEMORY SWITCH (w/ Seat Memory Switch)
Refer to PROCEDURE - Step 1
- INSTALL DOOR ARMREST COVER SUB-ASSEMBLY

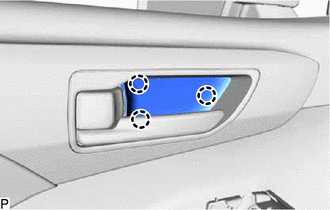

- INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
- INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

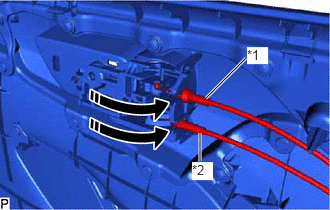

- Connect the front door lock open lever remote control cable and front door inside lock/unlock knob locking cable to the front door inside handle sub-assembly as shown in the illustration.
*1 Front Door Inside Lock/Unlock Knob Locking Cable *2 Front Door Lock Open Lever Remote Control Cable
Install in this Direction - w/ Illumination:

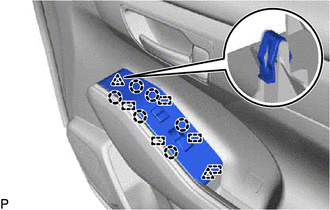

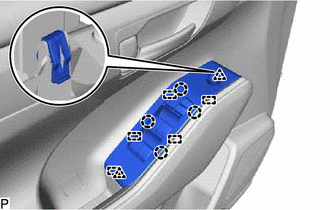

- w/ Seat Memory Switch:

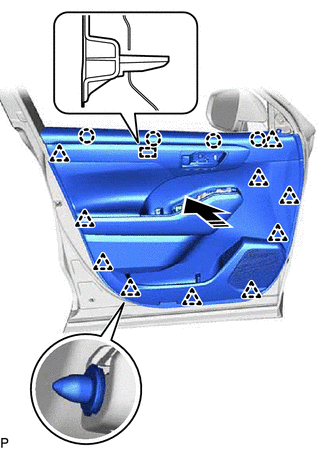

- Engage the guide, 4 claws and 10 clips as shown in the illustration.

Install in this Direction - Install the front door trim board sub-assembly with the 3 screws.

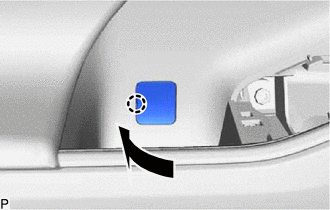

- Engage the claw as shown in the illustration.
- Connect the front door lock open lever remote control cable and front door inside lock/unlock knob locking cable to the front door inside handle sub-assembly as shown in the illustration.
- INSTALL COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL FRONT DOOR INSIDE HANDLE BEZEL
- INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
- INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
- INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for T24A-FTS:
Refer to PROCEDURE - Step 4 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]
for A25A-FXS:
Refer to PROCEDURE - Step 2 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]
- INSTALL BATTERY SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 3 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]
- INITIALIZE POWER WINDOW CONTROL SYSTEM
Refer to INITIALIZATION [12/2019 - ]
- INSPECT POWER WINDOW OPERATION
Refer to OPERATION CHECK [12/2019 - ]
- INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [10/2022 - 11/2023] , or refer to OPERATION CHECK [11/2023 - ]
- PERFORM CALIBRATION (w/ Panoramic View Monitor System)
Refer to CALIBRATION [10/2022 - 11/2023] , or refer to CALIBRATION [11/2023 - ]
