Installation [10/2022 - ]: Procedure

INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

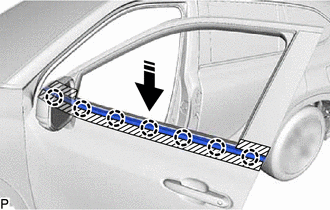

Engage the 7 claws to install a new front door belt moulding assembly as shown in the illustration.

INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
INSTALL FRONT DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 26
INSTALL FRONT DOOR WEATHERSTRIP CLIP
Refer to PROCEDURE - Step 27
INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 31
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 39
INSTALL COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL FRONT DOOR INSIDE HANDLE BEZEL
Refer to PROCEDURE - Step 41
INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 42
INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 43
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
Refer to PROCEDURE - Step 44
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for T24A-FTS:

Refer to PROCEDURE - Step 4 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]

for A25A-FXS:

Refer to PROCEDURE - Step 2 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]
INSTALL BATTERY SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 3 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]
INITIALIZE POWER WINDOW CONTROL SYSTEM
Refer to INITIALIZATION [12/2019 - ]
INSPECT POWER WINDOW OPERATION
Refer to OPERATION CHECK [12/2019 - ]
