Installation [12/2019 - ]: Procedure

  1. INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY
    1. Connect the 2 connectors.

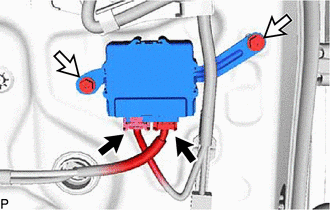

      GTY902851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the outer mirror control ECU assembly with the 2 screws.
  2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - ]

  3. INSTALL COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 42 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 42 [10/2022 - ]

  5. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 43 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 43 [10/2022 - ]

  6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 41 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 41 [10/2022 - ]

  7. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 44 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 44 [10/2022 - ]
