Installation [12/2019 - ]: Procedure

  1. INSTALL CENTER STOP LIGHT COVER
    1. Install 2 new center stop light covers.
  2. INSTALL CENTER STOP LIGHT GASKET
    1. Install a new center stop light gasket.
  3. INSTALL CENTER STOP LIGHT ASSEMBLY

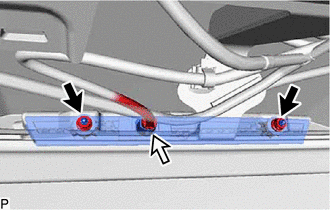

    1. Install the center stop light assembly with the 2 nuts.
      GTY944599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 3.5 N.m (36 kgf/cm, 31 in.lbf)

    2. Connect the connector.
  4. INSTALL DECK TRIM POCKET COVER PLATE

    Refer to PROCEDURE - Step 41
