Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE NO. 4 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 2

  4. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 4

  6. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET
    1. Disconnect the connector.
      GTY916376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws.
    3. Remove the 2 screws and navigation antenna assembly with bracket.
      GTY916375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NAVIGATION ANTENNA ASSEMBLY

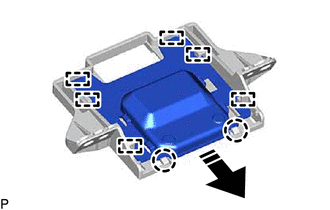

    1. Disengage the 2 claws and 6 guides to remove the navigation antenna assembly as shown in the illustration.
      GTY858722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE NAVIGATION ANTENNA BRACKET
