Disassembly [12/2019 - 11/2024]: Procedure

  1. REMOVE NO. 4 HEATER TO REGISTER DUCT

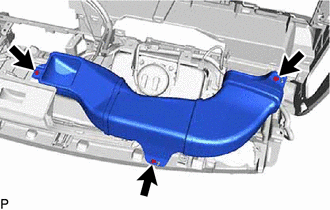

    1. Remove the 3 screws <B> or <D> and No. 4 heater to register duct.
      GTY939410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 HEATER TO REGISTER DUCT

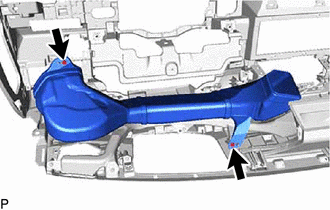

    1. Remove the 2 screws <B> or <D> and No. 1 heater to register duct.
      GTY898239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE DEFROSTER NOZZLE ASSEMBLY

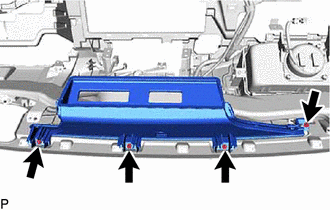

    1. Remove the 4 screws <B> or <D> and defroster nozzle assembly.
      GTY939409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

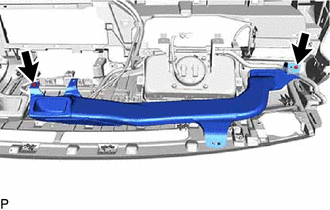

  4. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the 2 screws <B> or <D> and No. 2 side defroster nozzle duct.
      GTY898237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

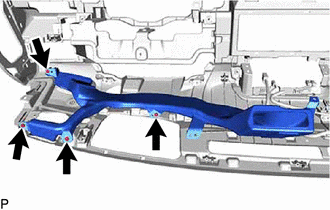

  5. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the 4 screws <B> or <D> and No. 1 side defroster nozzle duct.
      GTY898207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (w/ Navigation Antenna)

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - 11/2024]

  7. REMOVE ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - 11/2024]

  8. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET (w/ Navigation Antenna)

    w/o Manual (SOS) Switch: Refer to PROCEDURE - Step 6 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  9. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET (w/ Navigation Antenna)

    w/ Manual (SOS) Switch: Refer to PROCEDURE - Step 6 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  10. REMOVE NO. 1 SIDE DEFROSTER NOZZLE

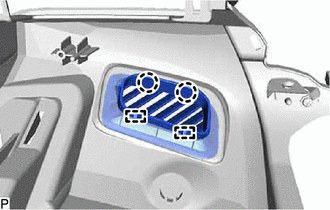

    1. Disengage the 2 claws and 2 guides to remove the No. 1 side defroster nozzle.
      GTY939402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 SIDE DEFROSTER NOZZLE

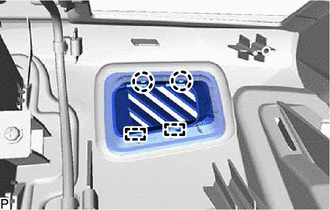

    1. Disengage the 2 claws and 2 guides to remove the No. 2 side defroster nozzle.
      GTY898209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 METER HOOD RETAINER

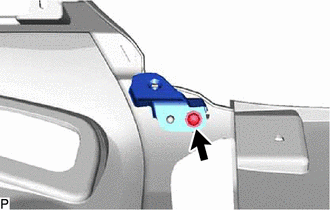

    1. Remove the screw <B> or <D> and No. 1 meter hood retainer.
      GTY898204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 METER HOOD RETAINER

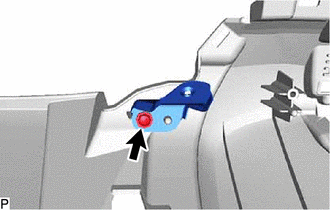

    1. Remove the screw <B> or <D> and No. 2 meter hood retainer.
      GTY898208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  15. REMOVE NO. 1 INSTRUMENT PANEL PIN
    1. for LH Side:

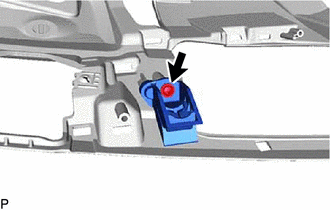

      1. Remove the screw <B> or <D> and No. 1 instrument panel pin.
        GTY898203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

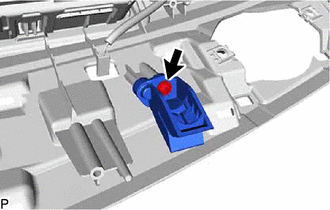

    2. for RH Side:
      1. Remove the screw <B> or <D> and No. 1 instrument panel pin.
        GTY898206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

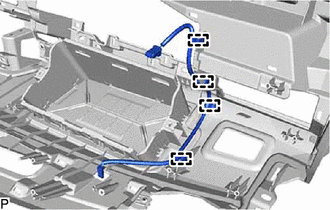

  16. REMOVE NO. 3 INSTRUMENT PANEL WIRE
    1. Disengage the 4 clamps to remove the No. 3 instrument panel wire.
      GTY898205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
