Disassembly [12/2019 - ]: Procedure

Refer to PROCEDURE - Step 2 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]

HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 2 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]

Refer to PROCEDURE - Step 2 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]

Refer to PROCEDURE - Step 2 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]

Refer to PROCEDURE - Step 3 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]

Refer to PROCEDURE - Step 4 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]

Refer to PROCEDURE - Step 5 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

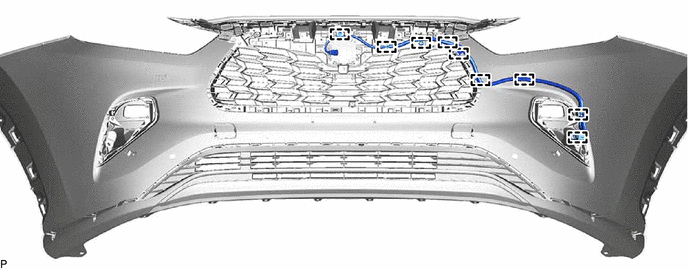

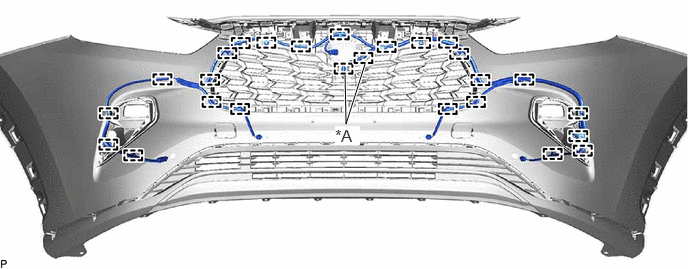

1. Disengage the 9 clamps to remove the No. 4 engine room wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage each clamp to remove the No. 4 engine room wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   w/ Panoramic View Monitor System

   -

   -

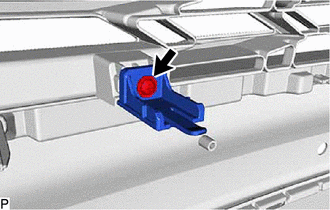

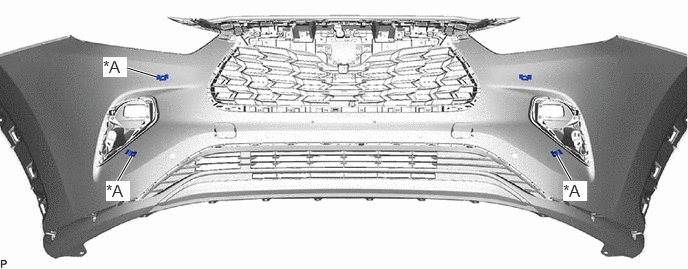

1. Remove each ultrasonic sensor clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   w/ Intuitive Parking Assist System

   -

   -

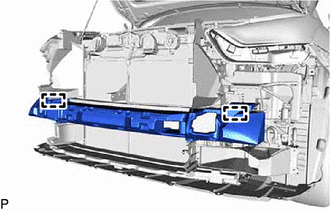

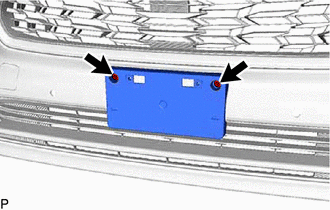

1. Remove the 2 screws to remove the front bumper extension mounting bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

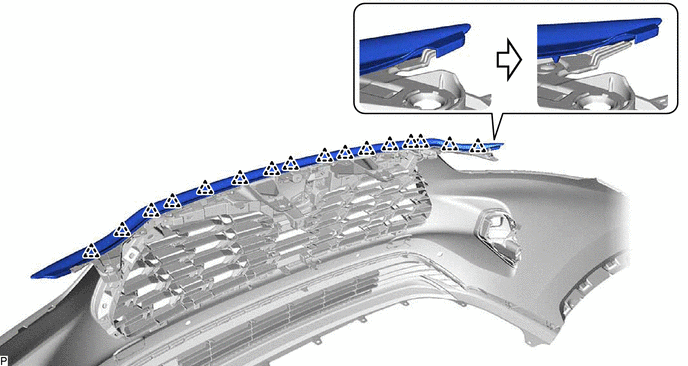

1. Disconnect the hood to radiator grille seal as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the LH side and RH side.

2. Disengage the 16 clips to remove the hood to radiator grille seal.

1. Remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

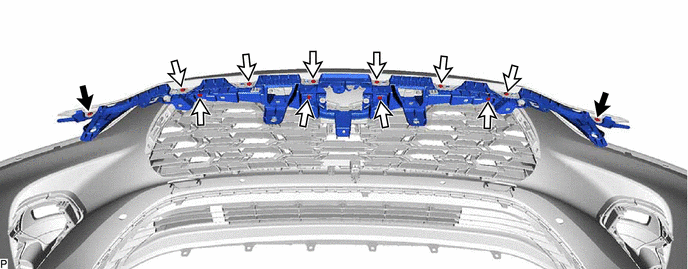

2. Remove the 2 clips and 10 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Clip

   Screw

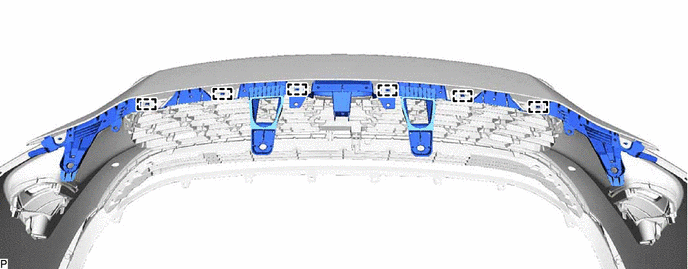

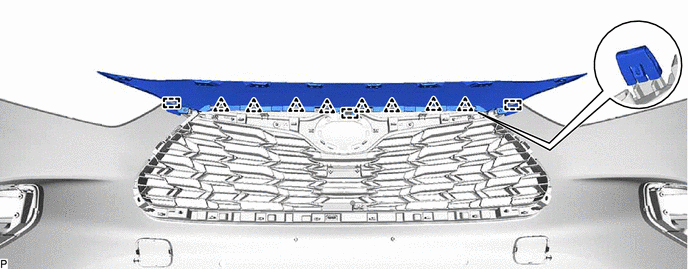

3. Disengage the 4 claws and 3 guides.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

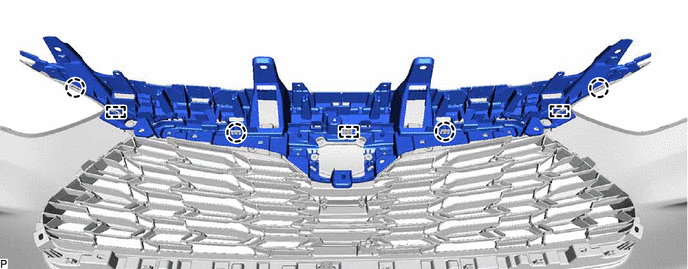

4. Disengage the 6 guides to remove the radiator grille bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

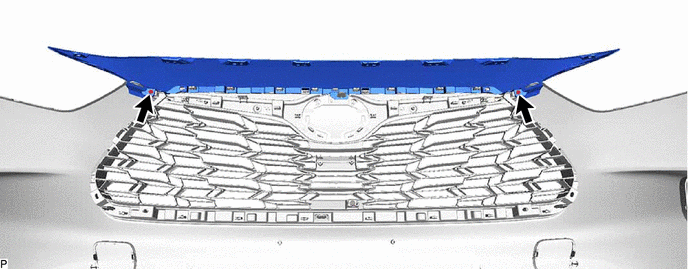

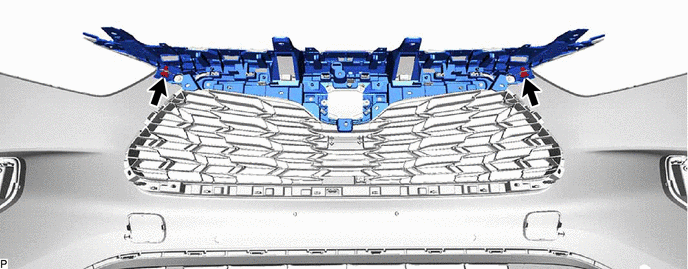

1. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 8 clips and 3 guides to remove the front bumper moulding.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

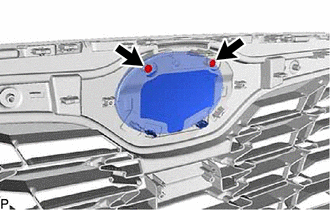

1. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

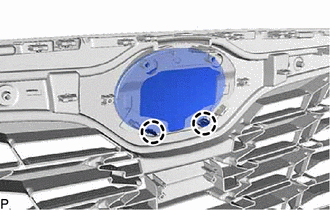

2. Disengage the 2 claws to remove the radiator grille (or front panel) emblem.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

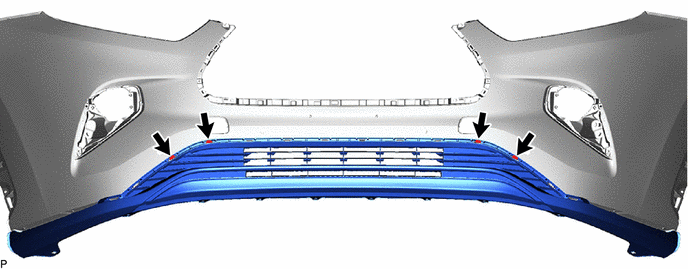

1. Remove the screw and No. 1 front bumper lower retainer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

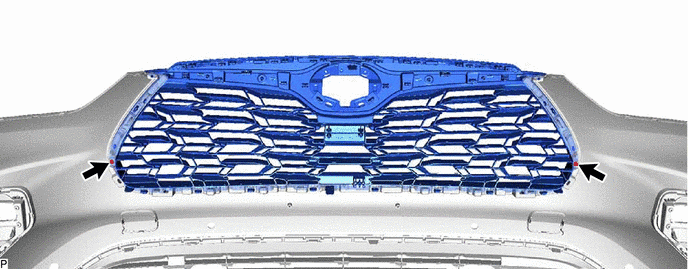

1. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

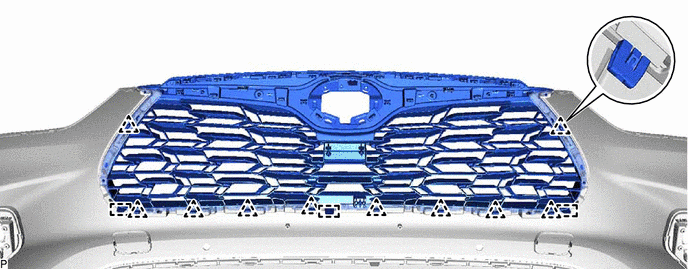

2. Disengage the 10 clips and 3 guides to remove the radiator grille sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

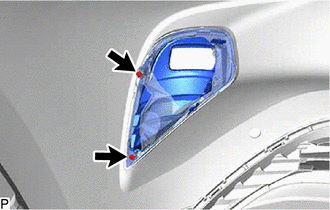

1. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 claws to remove the fog light cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

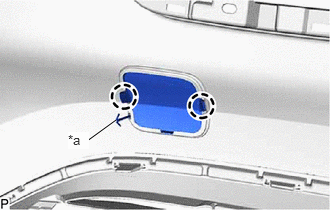

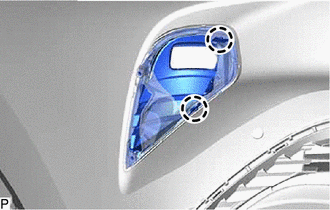

1. Disengage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Hook

2. Disengage the hook to remove the front bumper hole cover LH.

HINT:

Use the same procedure as for the LH side.

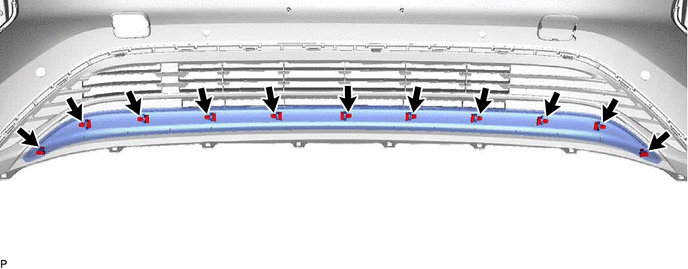

1. Remove the 11 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 11 guides to remove the front valance panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

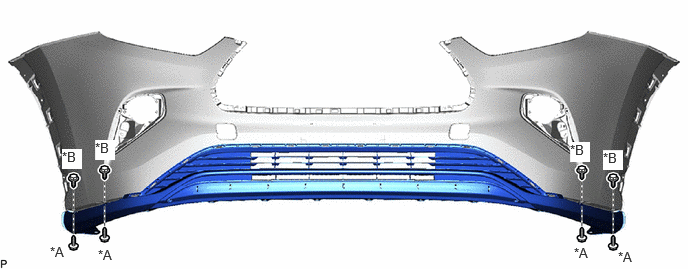

1. Remove the 4 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   for Type A

   *B

   for Type B

2. Remove the 4 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

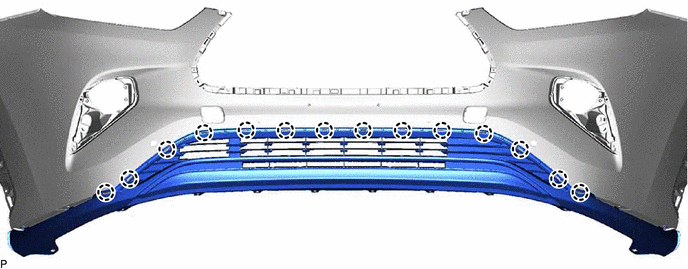

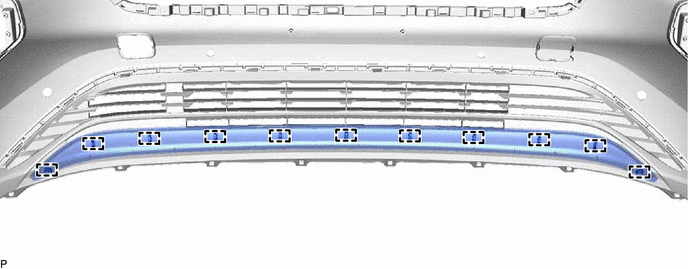

3. Disengage the 14 claws to remove the front bumper lower cover from the front bumper cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform this procedure only when replacement of the front bumper energy absorber is necessary.

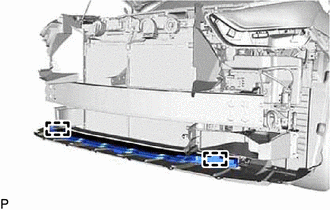

1. Disengage the 2 guides to remove the front bumper energy absorber.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform this procedure only when replacement of the front bumper lower absorber is necessary.

1. Disengage the 2 guides to remove the front bumper lower absorber.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform this procedure only when replacement of the front bumper reinforcement sub-assembly is necessary.

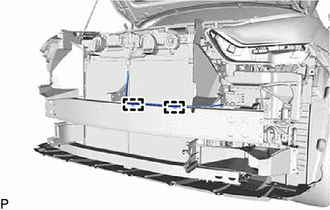

1. Disengage the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

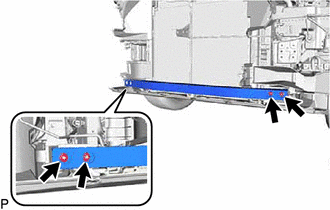

2. Remove the 8 bolts and front bumper reinforcement sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform this procedure only when replacement of the No. 2 front bumper reinforcement is necessary.

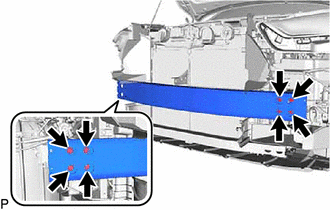

1. Remove the 4 nuts and No. 2 front bumper reinforcement.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform this procedure only when replacement of the front bumper side stay LH is necessary.

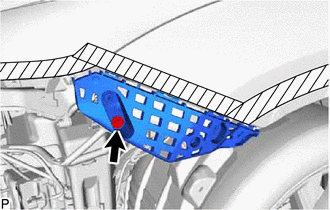

1. Remove the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

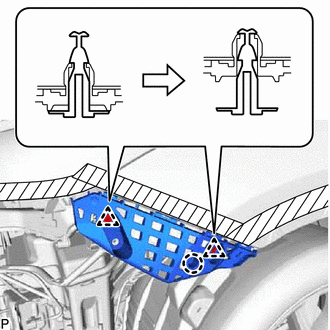

2. Disengage the 2 clips as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the claw to remove the front bumper side stay LH.

HINT:

Use the same procedure as for the LH side.
