Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 8 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - 10/2022]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 9 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - 10/2022]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 10 [09/2020 - 10/2022]

  4. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Disengage the 2 wire harness clamps.
      GTY881012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the heated oxygen sensor (for Bank 1) connector.

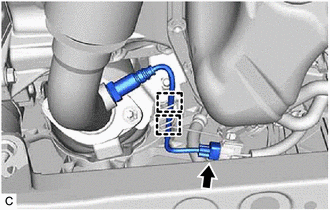

    3. Disengage the 2 wire harness clamps.
      GTY936709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the heated oxygen sensor (for Bank 2) connector.

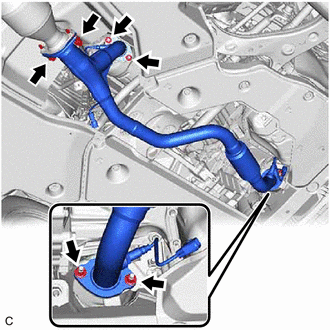

    5. Remove the 2 bolts, 4 nuts, 2 compression springs and front exhaust pipe assembly from the exhaust manifold assembly RH (TWC: Front Catalyst), exhaust manifold assembly LH (TWC: Front Catalyst) and center exhaust pipe assembly (TWC: Rear Catalyst).
      GTY886051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 3 gaskets from the front exhaust pipe assembly.
  5. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to REMOVAL [12/2019 - 10/2022]

  6. REMOVE MANIFOLD STAY

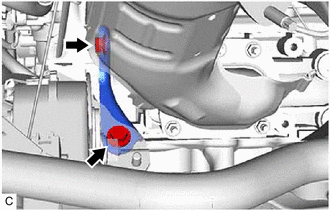

    1. Remove the bolt, nut and manifold stay from the exhaust manifold RH (TWC: Front Catalyst) and rear engine mounting bracket.
      GTY936708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst)

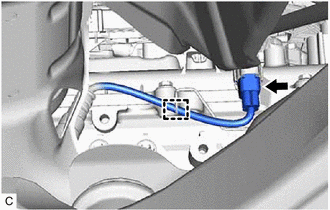

    1. Disconnect the air fuel ratio sensor (for Bank 1) connector.
      GTY886050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.

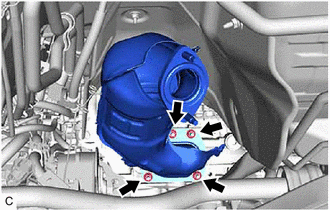

    3. Remove the 4 nuts and exhaust manifold assembly RH (TWC: Front Catalyst) from the cylinder head sub-assembly RH.
      GTY936707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)

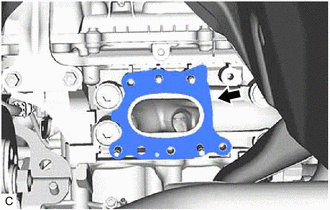

    1. Remove the exhaust manifold to head gasket (for Bank 1) from the cylinder head sub-assembly RH.
      GTY886047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 3

  10. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 23 [09/2020 - 10/2022]

  11. REMOVE AIR FUEL RATIO SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 1

  12. REMOVE NO. 1 SENSOR BRACKET

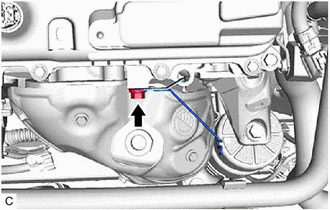

    1. Remove the bolt and No. 1 sensor bracket from the cylinder head sub-assembly.
      GTY886048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

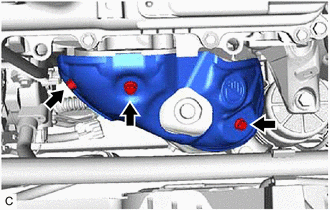

  13. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY886049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 MANIFOLD STAY

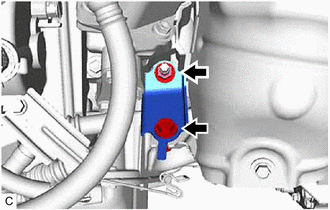

    1. Remove the bolt, nut and No. 2 manifold stay from the exhaust manifold assembly LH (TWC: Front Catalyst) and cylinder block sub-assembly.
      GTY886094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst)

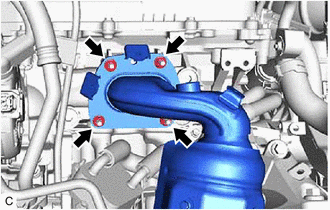

    1. Remove the 4 nuts and exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY886095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2)

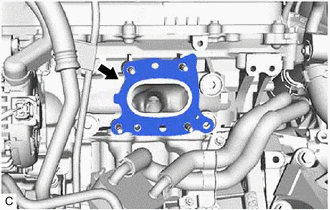

    1. Remove the exhaust manifold to head gasket (for Bank 2) from the cylinder head sub-assembly.
      GTY886096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE STUD BOLT

    HINT:

    If a stud bolt is deformed or its threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, remove the 2 stud bolts from the exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY886087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts from the exhaust manifold assembly RH (TWC: Front Catalyst).
      GTY886097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
