Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 3

  3. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

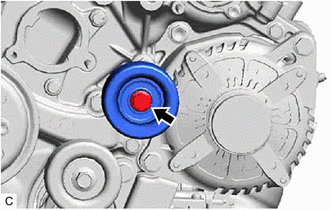

    1. Remove the bolt and No. 2 idler pulley sub-assembly.
      GTY722079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE WATER PUMP PULLEY

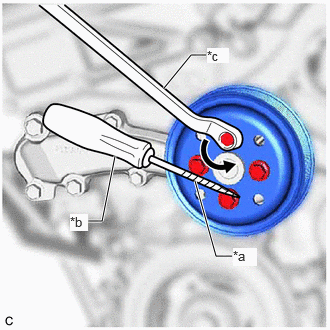

    1. Using a screwdriver or equivalent with its tip wrapped in protective tape, hold the water pump pulley.
      GTY948837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Hold
      *c Turn
    2. Remove the 4 bolts and water pump pulley.
  5. REMOVE ENGINE WATER PUMP ASSEMBLY

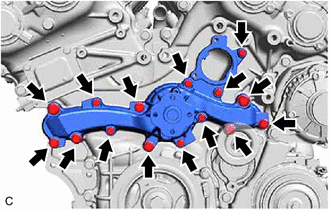

    1. Remove the 15 bolts, engine water pump assembly and water pump gasket.
      GTY768488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
