Installation [12/2019 - ]: Procedure

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Refer to INITIALIZATION [12/2019 - 10/2021] , or refer to INITIALIZATION [10/2021 - ]

1. Using SST, install the air fuel ratio sensor to the exhaust manifold (TWC: Front Catalyst).
   • SST: 09224-00012

   Specified tightening torque

   Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

   NOTE:

   If the air fuel ratio sensor has been struck or dropped, replace it.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [12/2019 - 11/2023] , or refer to PRECAUTION [11/2023 - ]

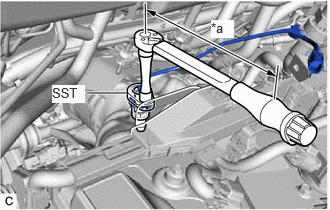

   • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

     37.7 N.m (384 kgf/cm, 28 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length

2. Connect the air fuel ratio sensor connector.

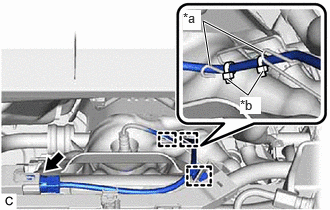

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wire Harness Clamp
   *b	Tie Band

3. Engage the 3 wire harness clamps so that the tie bands are positioned as shown in the illustration.

Refer to PROCEDURE - Step 66 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 66 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 64 [11/2023 - ]

Refer to PROCEDURE - Step 6 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - ]

1. Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

   Refer to INITIALIZATION [12/2019 - 10/2021] , or refer to INITIALIZATION [10/2021 - ]
