Installation [10/2021 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL VACUUM HOSE
    1. Install the vacuum hose to the intake manifold.
  2. INSTALL NO. 1 ENGINE COVER
    1. Install the No. 1 engine cover with the clip.
  3. INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. Install a new No. 1 intake manifold to head gasket to the intake manifold.
  4. INSTALL INTAKE MANIFOLD
    1. w/o Stud Bolt:
      1. Temporarily install the intake manifold to the cylinder head sub-assembly with the 5 bolts.

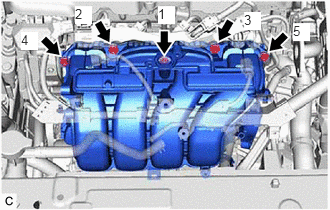

        GTY878743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Tighten the 5 bolts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

    2. w/ Stud Bolt:
      1. Temporarily install the intake manifold to the cylinder head sub-assembly.

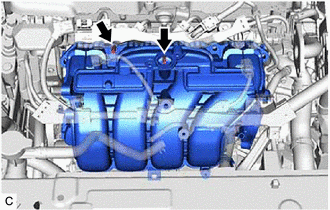

        GTY928042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using an E8 "TORX" socket wrench, install the 2 stud bolts.

        Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

      3. Temporarily install the 3 bolts and 2 nuts.

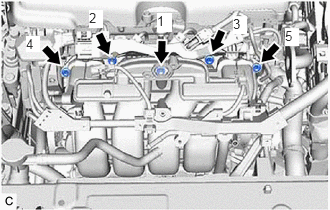

        GTY856106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Tighten the 3 bolts and 2 nuts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

  5. INSTALL NO. 2 FUEL VAPOR FEED HOSE
    1. Install the No. 2 fuel vapor feed hose to the intake manifold.
  6. INSTALL NO. 2 WATER BY-PASS PIPE
    1. Temporarily install the No. 2 water by-pass pipe to the cylinder block sub-assembly with the bolt (B).

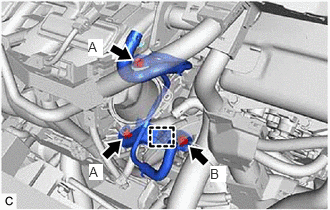

      GTY932569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, temporarily install the No. 2 water by-pass pipe to the intake manifold with the 2 bolts (A).
    3. Tighten the bolt (B).

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    4. Using an 8 mm socket wrench, tighten the 2 bolts (A).

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    5. Engage the wire harness clamp to connect the HV air conditioning wire.
  7. CONNECT NO. 3 WATER BY-PASS PIPE
    1. Using an 8 mm socket wrench, connect the No. 3 water by-pass pipe to the intake manifold with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Connect the No. 5 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.
  8. CONNECT ENGINE WIRE
    1. Engage the wire harness clamp to connect the engine wire to the intake manifold.

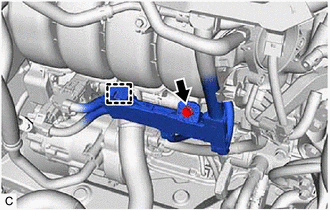

      GTY880686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Connect the engine wire to the cylinder head sub-assembly with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

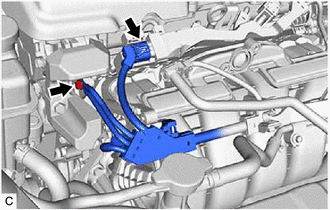

      GTY880685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the No. 5 engine wire connector.
  9. INSTALL PURGE VALVE (PURGE VSV)

    Refer to INSTALLATION [12/2019 - ]

  10. INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 1

  11. INSTALL NO. 1 EGR PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  12. CONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 5

  13. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [09/2020 - ]
