Installation [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL ENGINE OIL LEVEL SENSOR
    1. Using an 8 mm socket wrench, install the engine oil level sensor to the engine balancer assembly with the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Install a new clip to the engine oil level sensor.
    3. Connect the engine oil level sensor connector.
  2. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 12 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 12 [11/2023 - ]

  3. ADD ENGINE OIL

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 5 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  4. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 6 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 6 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  5. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

  6. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

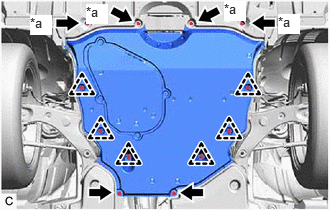

    1. Install the No. 2 engine under cover assembly with the 4 bolts, 2 screws and 6 clips.

      Bolt

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

      GTY930588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
