Removal [10/2022 - ]: Procedure

  1. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 3

  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    for UA81E / UA81F: Refer to PROCEDURE - Step 1

    for P810: Refer to PROCEDURE - Step 1

  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE NO. 2 POWER OUTLET SOCKET ASSEMBLY

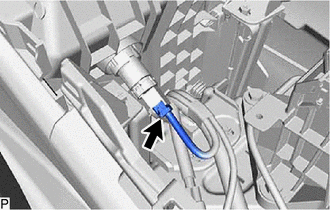

    1. Disconnect the connector.
      GTY923522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

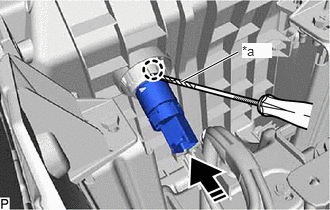

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 2 power outlet socket assembly as shown in the illustration.
      GTY935402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  7. REMOVE NO. 2 POWER OUTLET SOCKET COVER

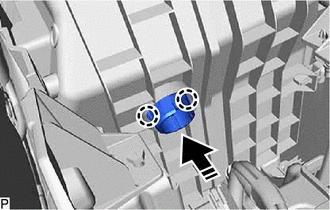

    1. Disengage the 2 claws and remove the No. 2 power outlet socket cover as shown in the illustration.
      GTY894252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
