Removal [12/2019 - ]: Procedure

  1. REMOVE REAR CONSOLE LOWER BOX

    Refer to PROCEDURE - Step 11 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - ]

  2. REMOVE NO. 2 CONSOLE BOX HOLE COVER

    Refer to PROCEDURE - Step 12 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - ]

  3. REMOVE NO. 3 POWER OUTLET SOCKET ASSEMBLY (w/ Voltage Inverter)

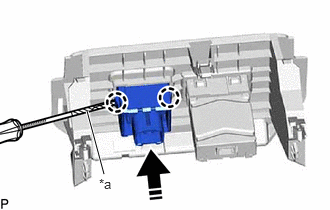

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the No. 3 power outlet socket assembly as shown in the illustration.
      GTY923179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  4. REMOVE NO. 2 USB CHARGER SOCKET

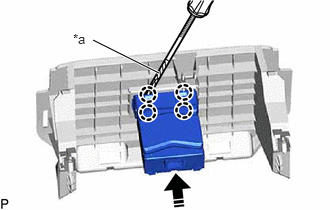

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws and remove the No. 2 USB charger socket as shown in the illustration.
      GTY847807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
