Removal [10/2022 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 9

  3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 4 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]

  5. REMOVE INSTRUMENT PANEL FINISH END PANEL LH

    Refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  6. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  7. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 7 [11/2023 - ]

  8. REMOVE TRIP SWITCH

    Refer to PROCEDURE - Step 5

  9. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 9 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 9 [11/2023 - ]

  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 17 [11/2023 - ]

  11. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 20 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 20 [11/2023 - ]

  12. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 22 [11/2023 - ]

  13. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

    Refer to PROCEDURE - Step 3 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]

  14. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 9 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 9 [11/2023 - ]

  15. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 25 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 25 [11/2023 - ]

  16. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  18. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 28 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 28 [11/2023 - ]

  19. REMOVE INSTRUMENT PANEL FINISH END PANEL RH

    Refer to PROCEDURE - Step 29 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 29 [11/2023 - ]

  20. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 30 [11/2023 - ]

  21. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 31 [11/2023 - ]

  22. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 39 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 39 [11/2023 - ]

  23. REMOVE FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 41 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 41 [11/2023 - ]

  24. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 42 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 42 [11/2023 - ]

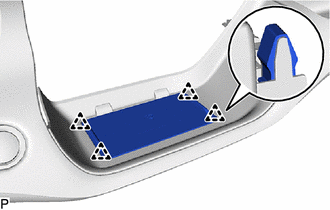

  25. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
    1. Disengage the 4 clips to remove the mobile wireless charger cradle assembly.
      GTY1120105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
