Installation [12/2019 - ]: Procedure

1. Apply MP grease to the lip of a new timing chain cover oil seal.
   NOTE:

   • Keep the lip free from foreign matter.
   • Do not allow MP grease to contact the dust seal.

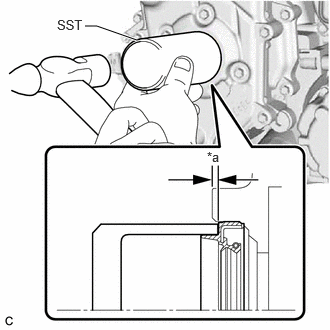

2. Using SST and a hammer, tap in the timing chain cover oil seal.
   • SST: 09223-00010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   0 to 2 mm

   Standard Depth

   0 to 2 mm (0 to 0.0787 in.) (From the edge of the No. 2 timing chain cover assembly)

   NOTE:

   Do not tap in the timing chain cover oil seal at an angle.

Refer to PROCEDURE - Step 48 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 48 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 48 [11/2023 - ]

Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
