Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

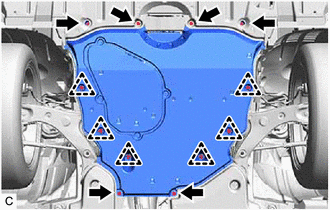

    1. Remove the 4 bolts, 2 screws, 6 clips and No. 2 engine under cover assembly.
      GTY888556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 2 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]

  3. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 57 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 57 [11/2023 - ]

  4. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.

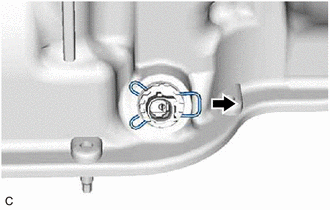

    2. Remove the clip from the engine oil level sensor.
      GTY771692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

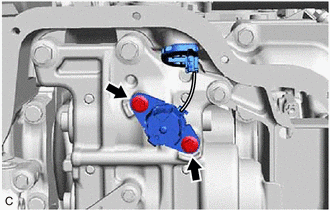

    3. Using an 8 mm socket wrench, remove the 2 bolts and engine oil level sensor from engine balancer assembly.
      GTY754900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
