Installation [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TEMPERATURE SWITCH

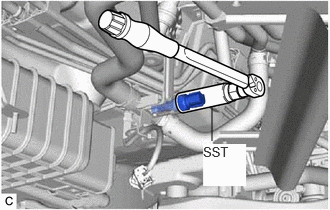

    1. Using SST, install a new temperature switch to the water pipe joint.
      GTY879096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09817-33191

      Torque: 7.4 N.m (75 kgf/cm, 65 in.lbf)

      NOTE:

      Do not apply any excessive force to the heater pipe when installing the temperature switch.

    2. Connect the temperature switch connector.
  2. ADD ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 2

  3. INSPECT FOR COOLANT LEAK (for Engine)

    Refer to PROCEDURE - Step 1

  4. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 20 [12/2019 - 11/2023] , or refer to PROCEDURE - Step 20 [11/2023 - ]
