Removal [11/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [11/2023 - ]

  3. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 4

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

  5. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [09/2020 - ]

  6. REMOVE EGR VALVE ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  7. REMOVE NO. 2 WATER BY-PASS PIPE

    Refer to PROCEDURE - Step 8

  8. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    See step  8

  9. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

    See step  9

  10. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

    Refer to PROCEDURE - Step 9

  11. REMOVE NO. 2 FUEL PRESSURE SENSOR

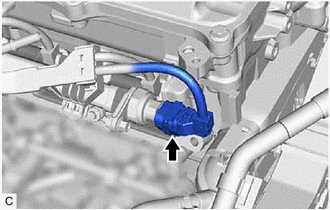

    1. Disconnect the No. 2 fuel pressure sensor connector.
      GTY814997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

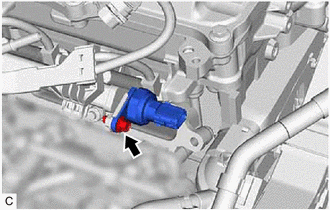

    2. Using an 8 mm socket wrench, remove the bolt, No. 2 fuel pressure sensor and No. 2 fuel pressure sensor holder from the fuel delivery pipe sub-assembly.
      GTY814994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
