Removal [10/2022 - 11/2023]: Procedure

  1. DISABLE BRAKE CONTROL (for HV Model)

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT WHEEL

    See step  1

  3. REMOVE FRONT DISC BRAKE PAD

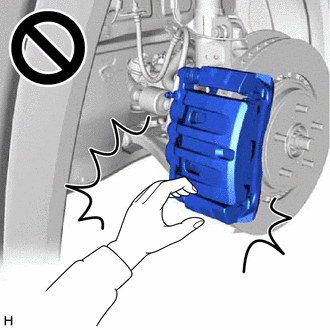

    WARNING:
    • Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads.
    • After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.
      GTY904495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

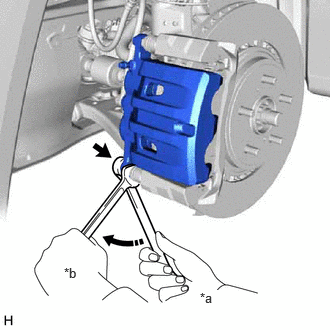

    1. Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.
      GTY853450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      NOTE:

      Do not kink or damage the brake line.

    2. Pull the front disc brake cylinder assembly upward.

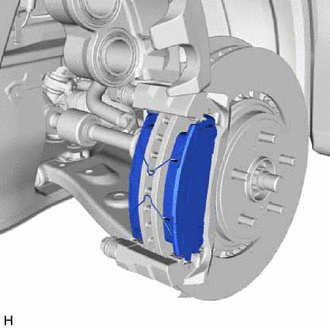

    3. Remove the 2 anti-squeal springs.
      GTY904492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 front disc brake pads from the front disc brake cylinder mounting.
  4. REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT
    1. Remove the front No. 1 disc brake anti-squeal shim from each front disc brake pad.
    2. Using a screwdriver, remove the front disc brake pad wear indicator plate from each front disc brake pad.
      GTY904515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
