Removal [12/2019 - ]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 4 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]

  2. REMOVE INSTRUMENT PANEL FINISH END PANEL

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 6 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  4. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 7 [11/2023 - ]

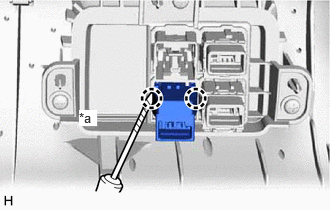

  5. REMOVE STEERING HEATER SWITCH (for 8 Inch Display)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the steering heater switch.
      GTY877605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

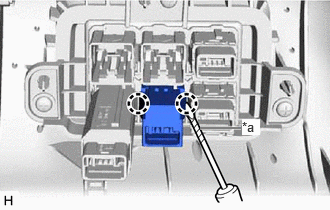

  6. REMOVE STEERING HEATER SWITCH (for 12.3 Inch Display)
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the steering heater switch.
      GTY932499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
